Climatic Test Cell

Residence

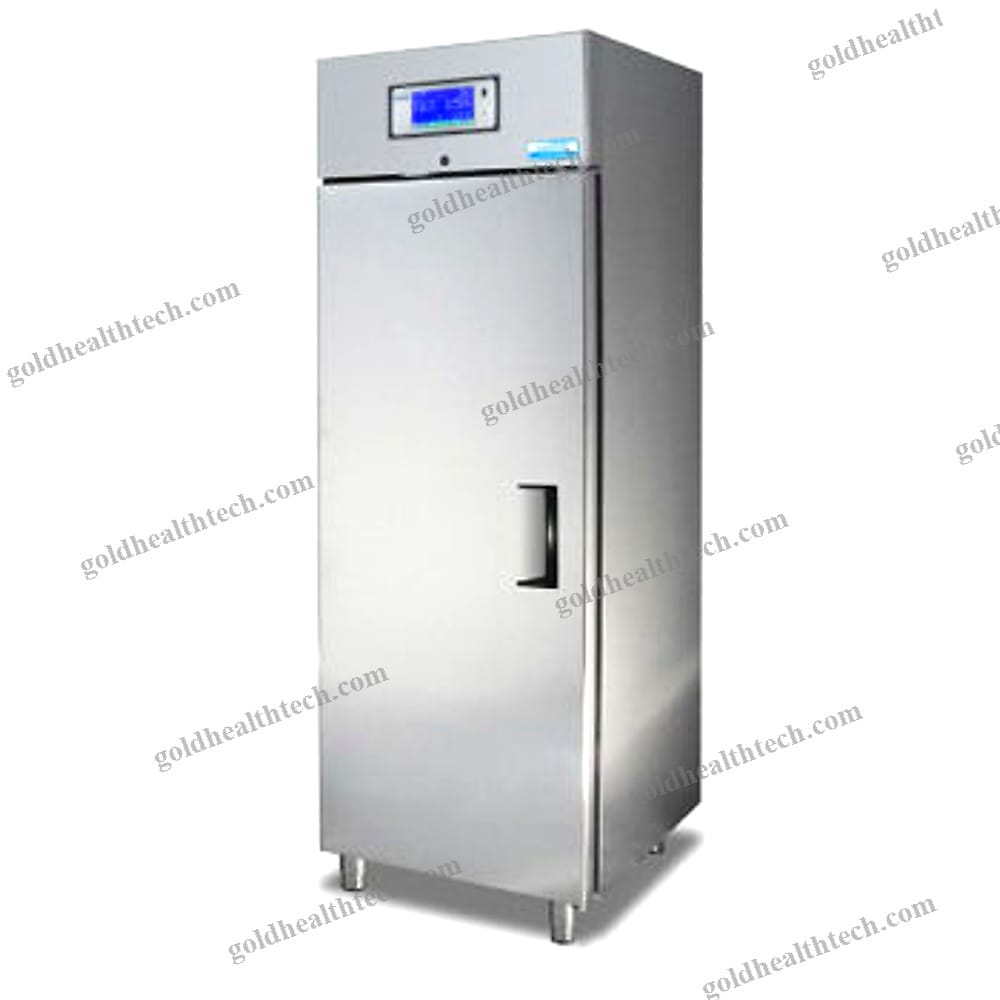

The cabinet's top and bottom sides are constructed from galvanized sheet steel, while the backplane is composed of stainless steel. Four wheels, two of which are equipped with brakes. Interior spaceConstructed from stainless steel. The interior features a slippery surface and rounded corners, which make it easy to clean and meet the most stringent hygiene standards. input:
output:Insulation

Circulation air cooling, which is CFC-free, is used to reduce temperature gradients to a minimum and achieve rapid and uniform temperature control using high-density foamed-in-place polyurethane. The door

A solid door is included as standard with a right-hand hinge, but it is also available with a left-hand hinge at no additional cost. Magnetic seal that is resistant to grease. Furthermore, one inner glass door is included. Interior fixtures

- Four pieces. Shelves of the grating type (diameter: 530x570 mm) (Maximum number of shelves: 12)

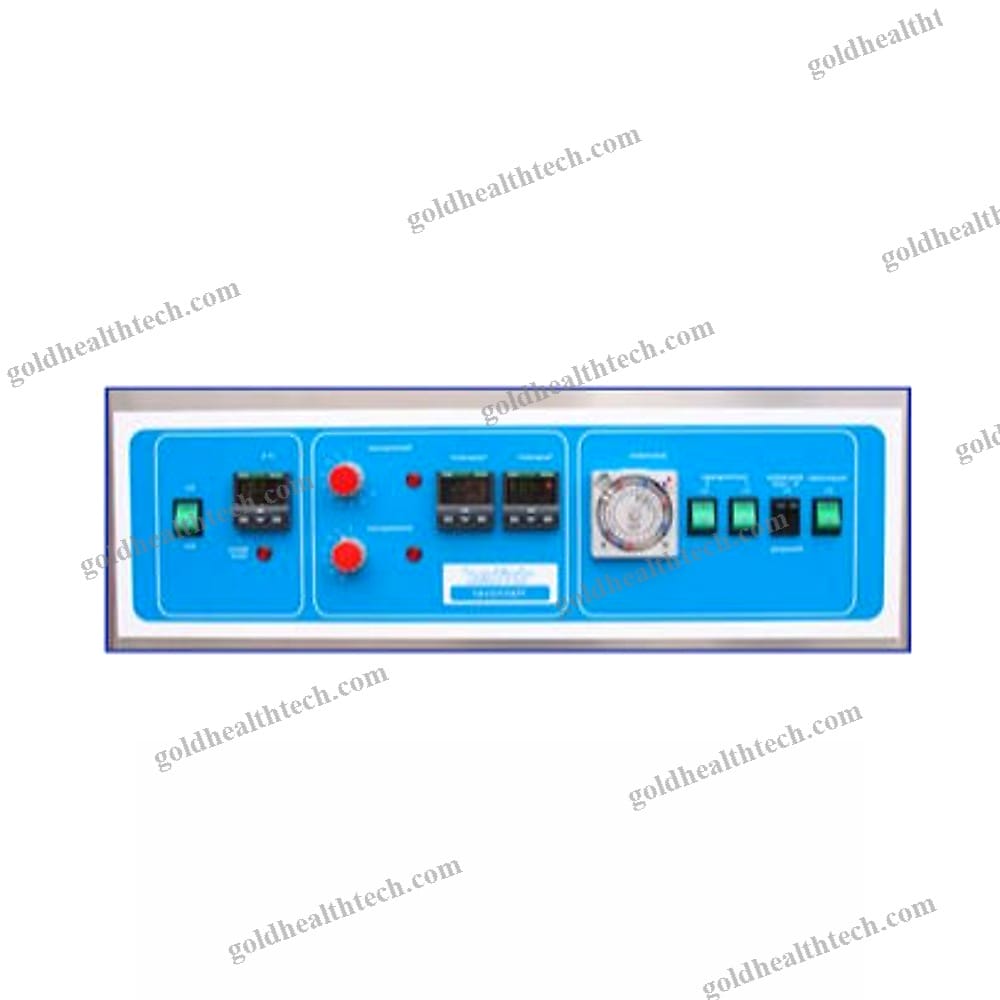

- One cable port The control system in question is as follows:situated above the door. The membrane push-button allows for the digital adjustment of the actual value and setpoint. Value that is permanently readable input:
output:Utilizing the subsequent control units: - Two pieces The PID auto-tuning controller for temperature and humidity is enabled by a digital thermostat with a microprocessor.

- Thermostat that prevents overheating, accompanied by an alarm message

- Alarm message associated with safety temperature limiter input:
output:Message of alarm:- Alarm for over- and under-temperature conditions - Alarm for compressor failure- Humidity alarm (low water)Steam humidificationEquipped with a 20-liter tank that can be filled with distilled water. (No water from the tap) Water quality: The purity of the destination water is less than 20 μS/cm, with a degree of purity of 5 μmm.
