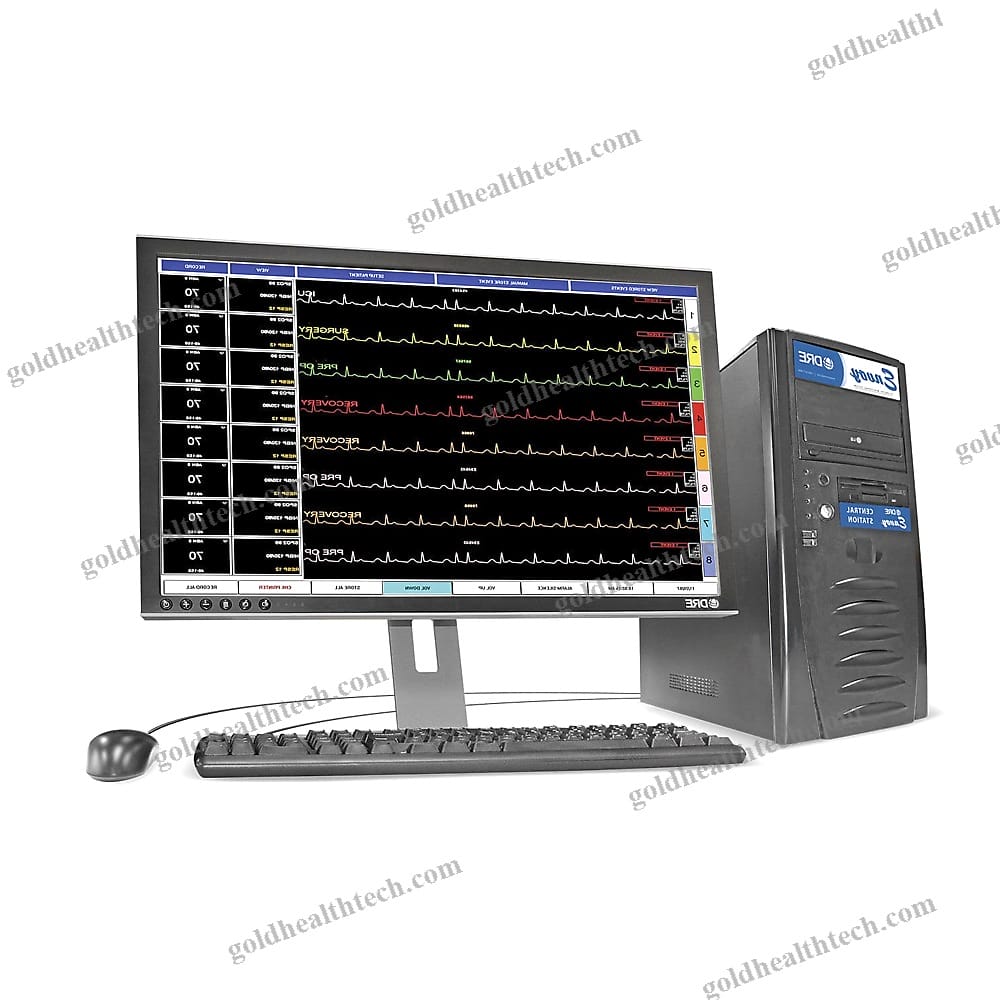

Central Patient Monitoring Station

The Avante Envoy TS is the future of Central Station Cardiac Monitoring. The design is founded on cutting-edge software and computer technology. The arrhythmia algorithm is based on the same safe, time-proven algorithm. The mobile telemetry system is intended to be user-friendly, yet it is also fully customizable and adaptable to nearly any hospital configuration.



The Avante Envoy TS enables the monitoring of up to 16 patients simultaneously through the use of portable ECG transmitters. Additionally, the telemetry system can be integrated with the Avante Waveline Pro and Avante Waveline Touch vital signs monitors to monitor a variety of parameters.

Characteristics



Identification of arrhythmiasinput:
output:Waveform colors of the patientinput:
output:Programmable alarm processing Trend processing br/>


Charting automaticallySupport for multiple leadsA comprehensive system of full disclosureGraphics printer and strip chart recorderinput:
output:
Bidirectional bedside supportDial-up live waveforms Ethernet network supportFull disclosure data can be faxed on demand.input:
output:OEM System Configurationinput:

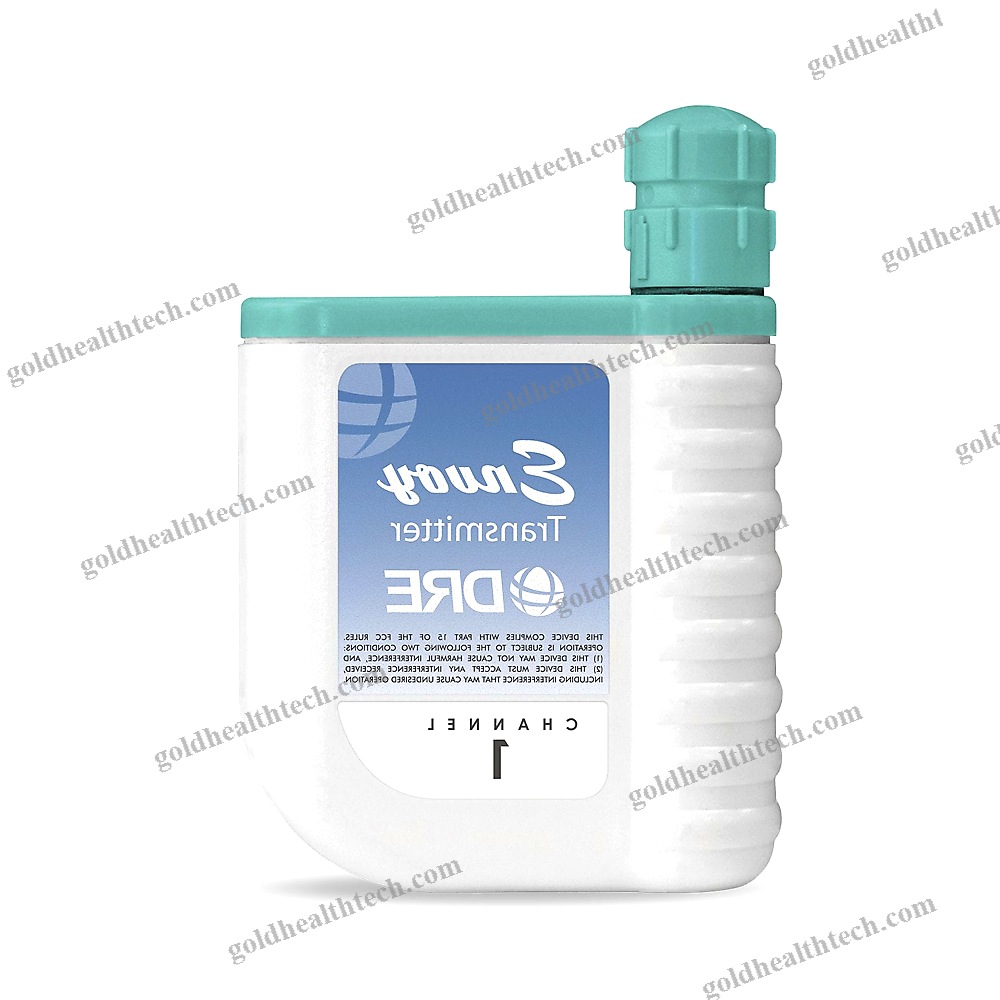

output:Wireless electrocardiogram (ECG) monitoring is provided by dual-lead telemetry transmitters.Independent lead wiresinput:
output:Battery that lasts for three daysinput:
output:Imperviousinput:
output:Compact and lightweightinput:
output:Two leads for bipolar electrocardiogramsSPECIFICATIONSinput:
output:Dimensions and Physical WeightHeight: 3.1 inchesinput:
output:Width: 2.8 inchesDepth: 0.93 inchesinput:
output:Weight: 4 ounces with batteriesEnergyBattery life: Three days of continuous operation Power: Two "AAA" alkaline batteriesinput:
output:Frequency: 608-614 MHzinput:
output:Stability of frequency: Crystal controlled to within.0015 percent of the assigned frequency.Temperature range: 30°F to 135°Finput:
output:Humidity: Waterproofinput:
output:Nominal bandwidth:.5 to.65 Hzinput:
output:Solid state circuitry is housed in a waterproof, impact-resistant, molded case, which includes a battery.
