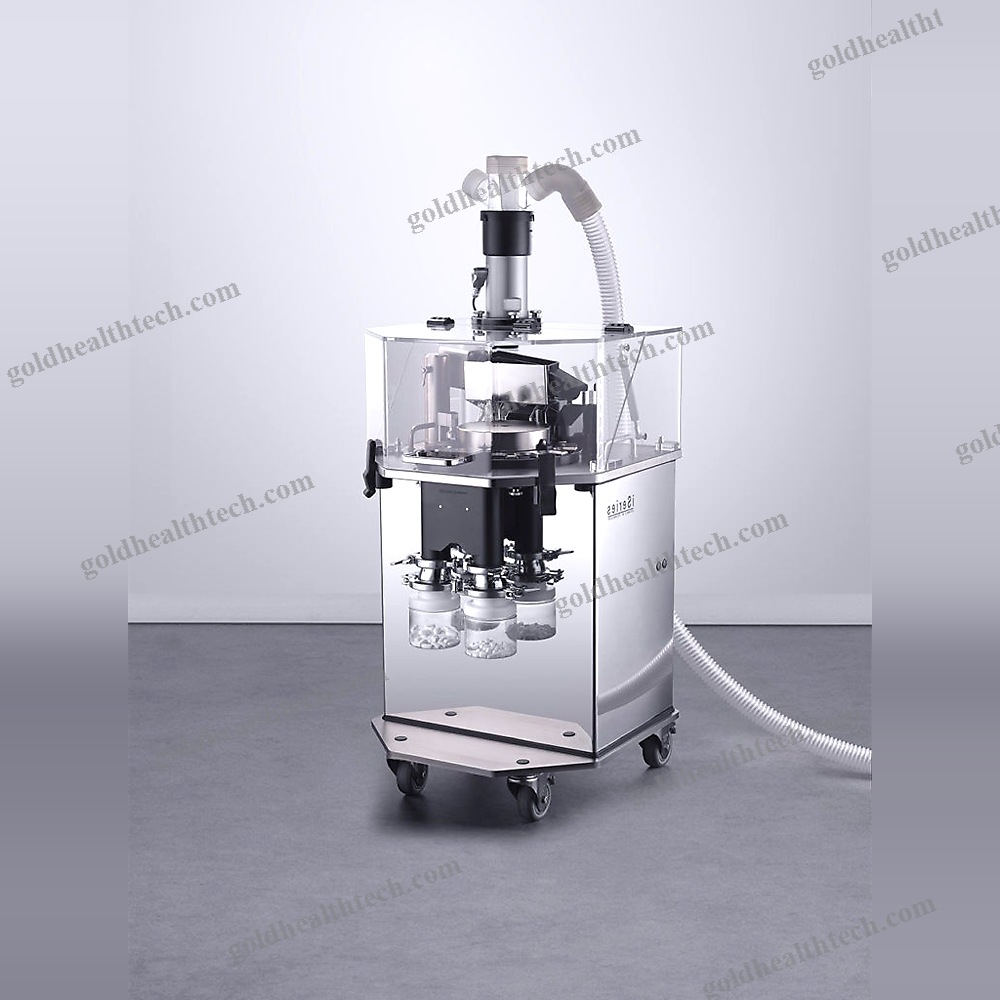

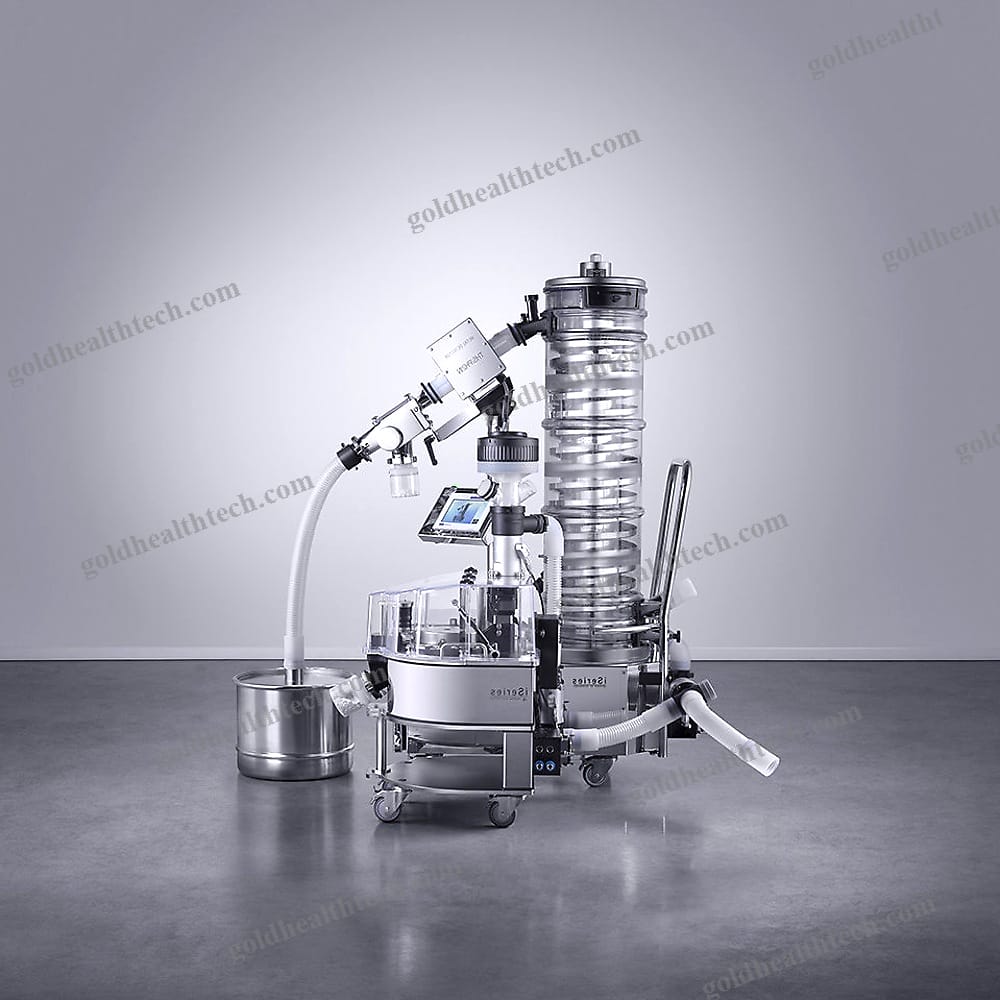

Capsule Deduster

Operator exposure to product and dust contamination in the production room is diminished by the "DT" Dust Tight model. Dust Tight systems are capable of being upgraded to "C" Containment and High Containment washable solutions through modular means.

The stainless steel segments are optimal for effervescent tablets and microtabs.input:
output:Key advantages

Patented "Dust Tight" dedusting and metal check system that is ATEX certifiedFour elevation heights, ranging from 500 mm to 1250 mm, are available. The light components are FDA-approved for easy handling and cleaning.Ergonomic, Efficient, Robust, and Reliable

Low-noise operation <69 decibels (A)No risk of cross-contamination - Simple validation

Central HMI with OPC UA, CFR 21 Part 11 compliantOur patented metal check system, Flex Connect, ensures a completely closed Dust Tight transfer from the deduster to the drum without the need for a tri-clamp solution.input:

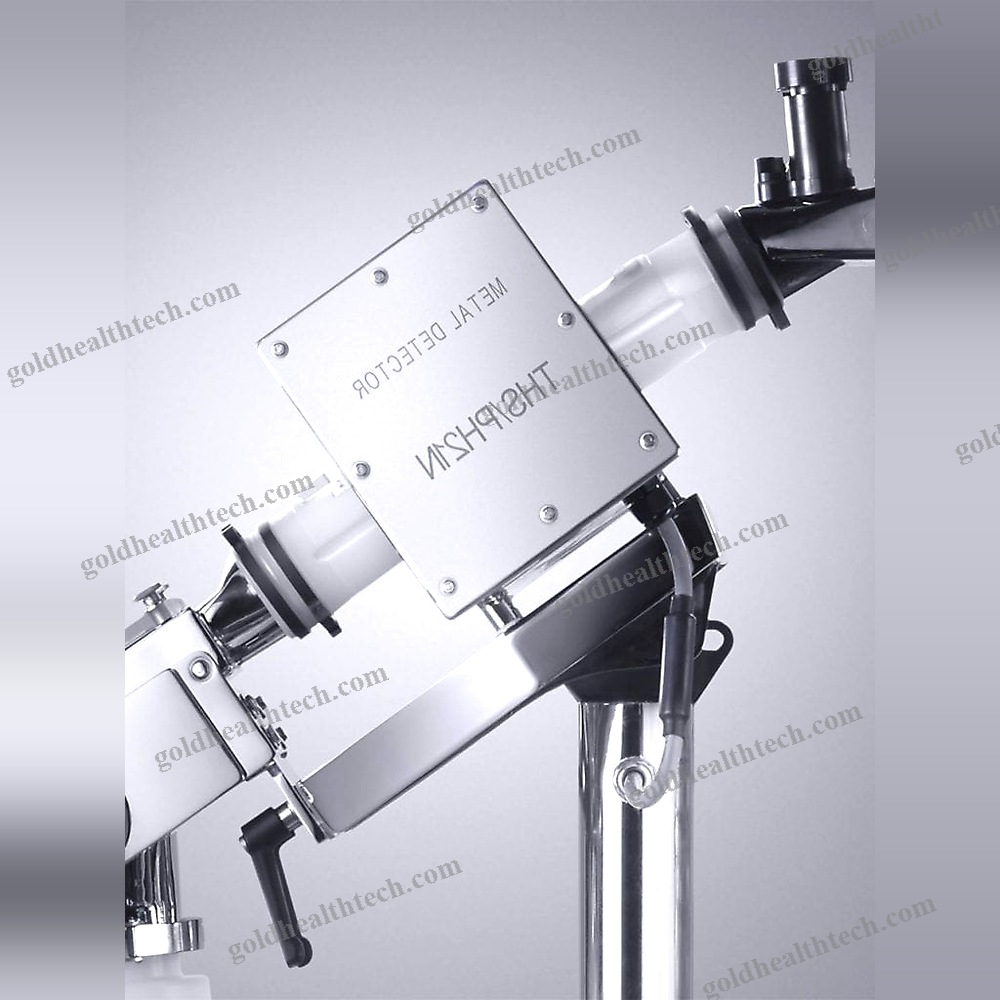

output:A metal particle detector is typically included in the unit. Lock, Ceia, and Safeline are the three detectors that are accessible. Our Flex Connect components isolate the vibrating components of the deduster from the steady components, as metal particle detectors are sensitive to vibrations. This enables it to achieve the highest level of precision, as evidenced by the spherical 316L stainless steel part of 0.4 mm that is included in the products. A smart system enables the introduction of test samples into the metal check head without any interaction between the operator and the product.input:
output:The original software of the metal check supplier is integrated into the central machine HMI to monitor the metal check parameters. Four distinct conveying dedusting heights are accessible, ranging from 500 mm to 1250 mm.
