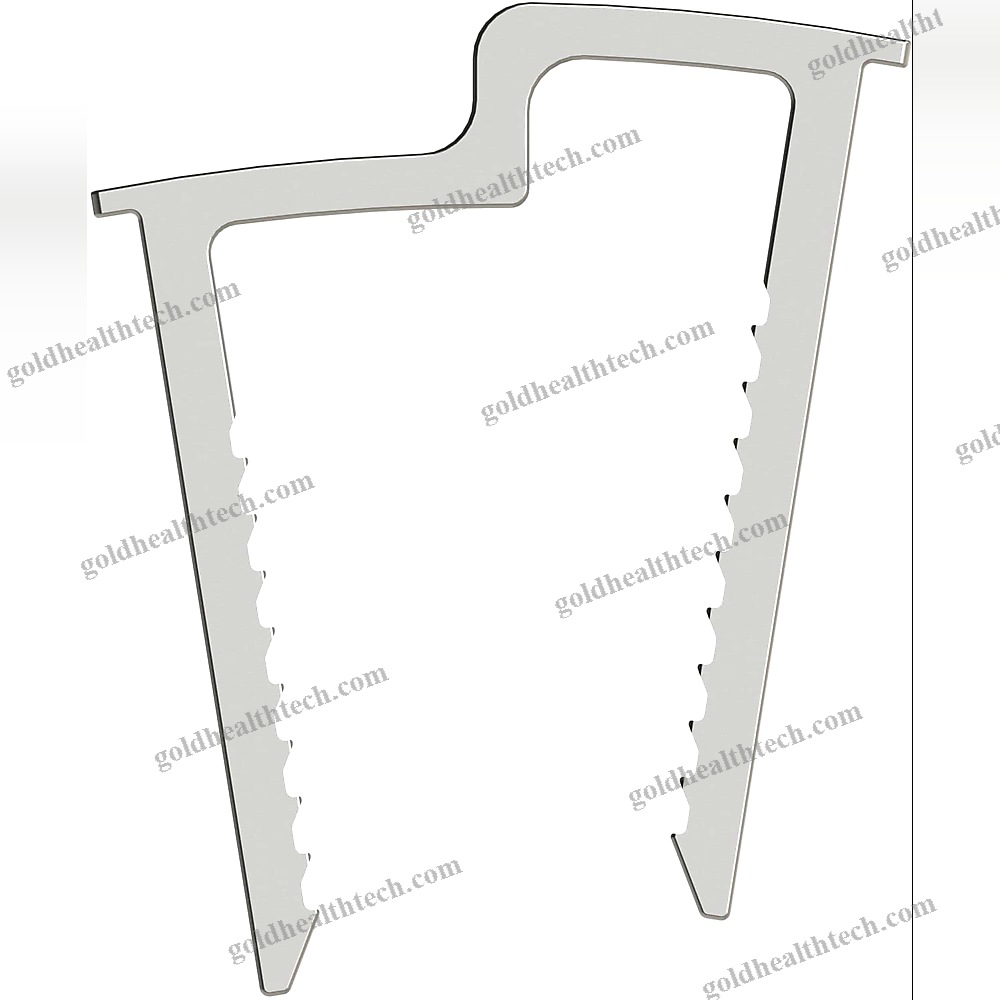

Calcaneal Displacement Osteotomy Bone Staple

NitinolNitinol composition that is exceptionally elastic.Optimized Fixation

Teeth offer high pull-out strength and serve as a means of fixation.Continuous Compression

Geometry of the bridge to achieve optimal compression.input:
output:Capacity to Reposition

Wings enable the clip to be re-engaged and for top-loading flush to bone insertion.input:
output:
Extra-wide legs

Wide legs to ensure an optimal distribution of compression force.Instrumentationinput:
output:Sterile-packed stainless steel instrumentation is included with DynaFORCE® Step Clips. Implants are preloaded into inserters prior to each operation.DYNAFORCE® STEP SYSTEM

The DynaFORCE® Step system is sterile-packed and provides the advantages of continuous compression, with a wide range of sizes available.Product Features:Continuous compression nitinol implant

Technique that is both straightforward and effective

Instrumentation made of sterile stainless steel withEcoSMART® serviceinput:
output:SIZES THAT ARE AVAILABLE

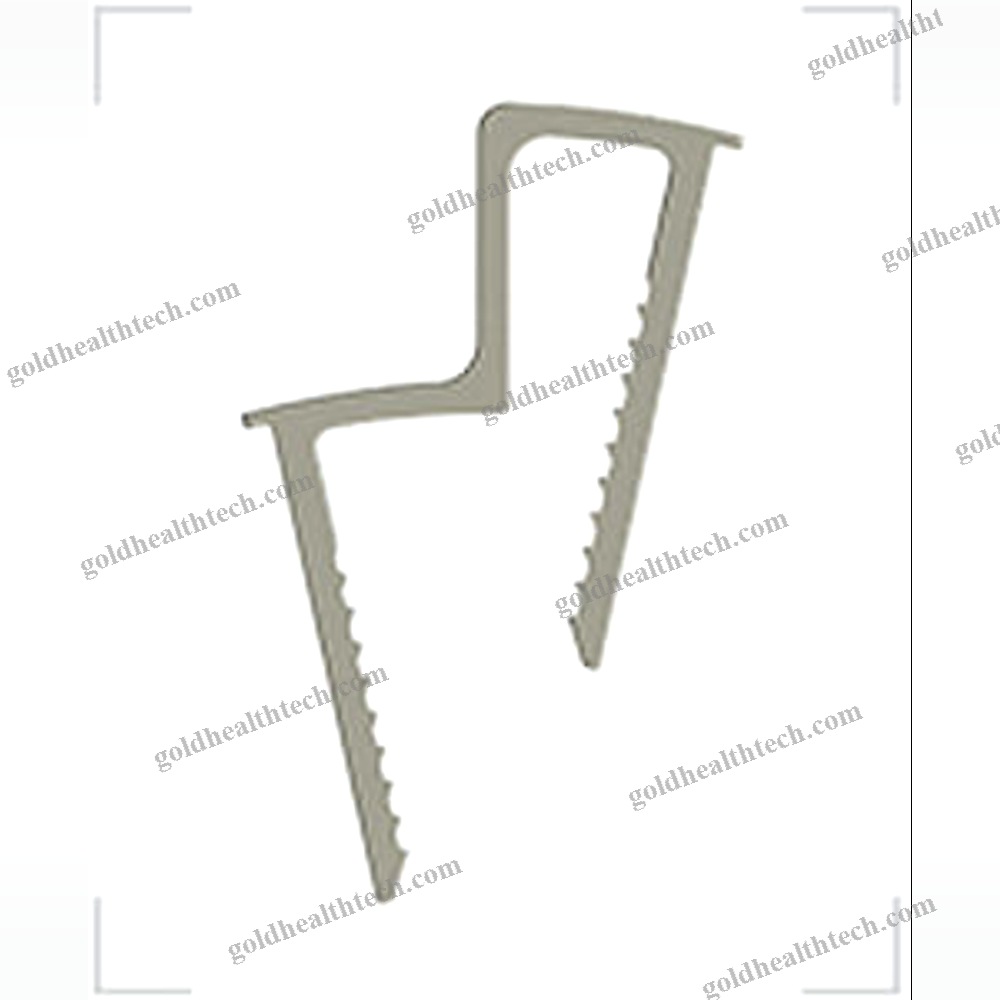

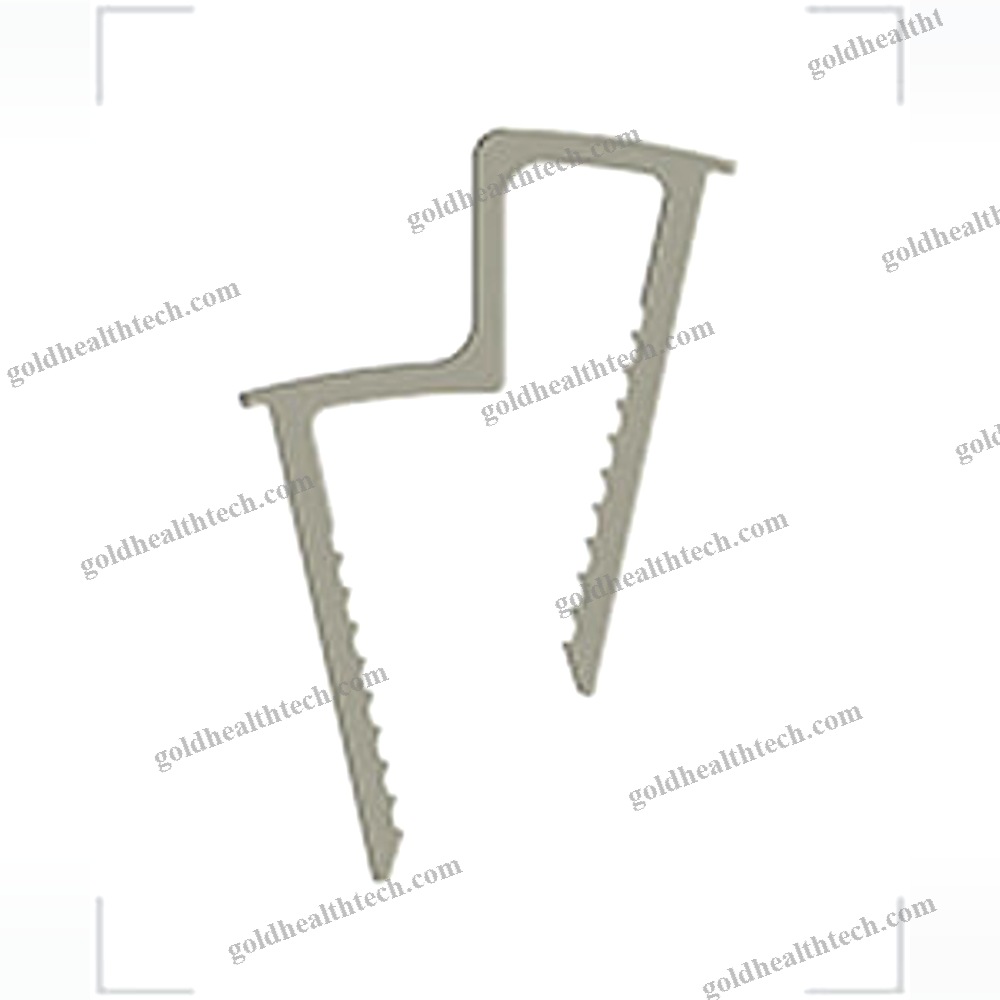

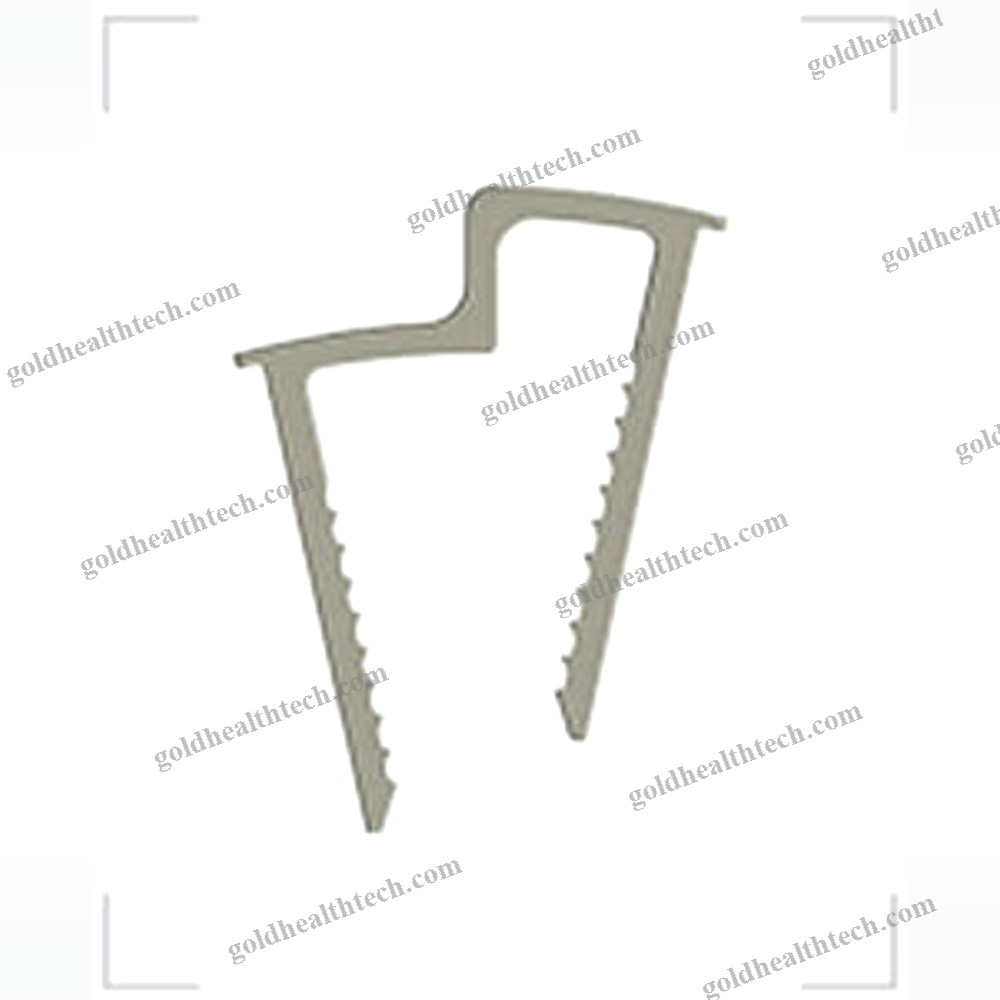

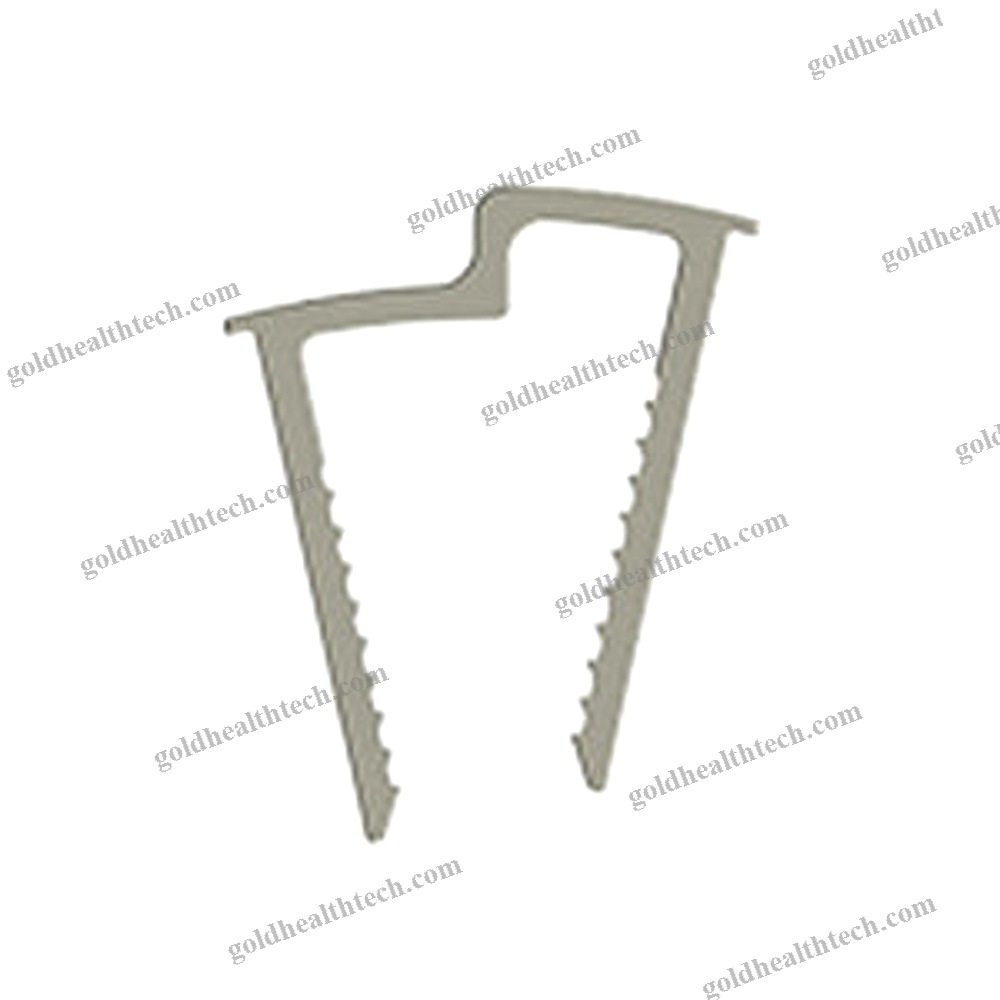

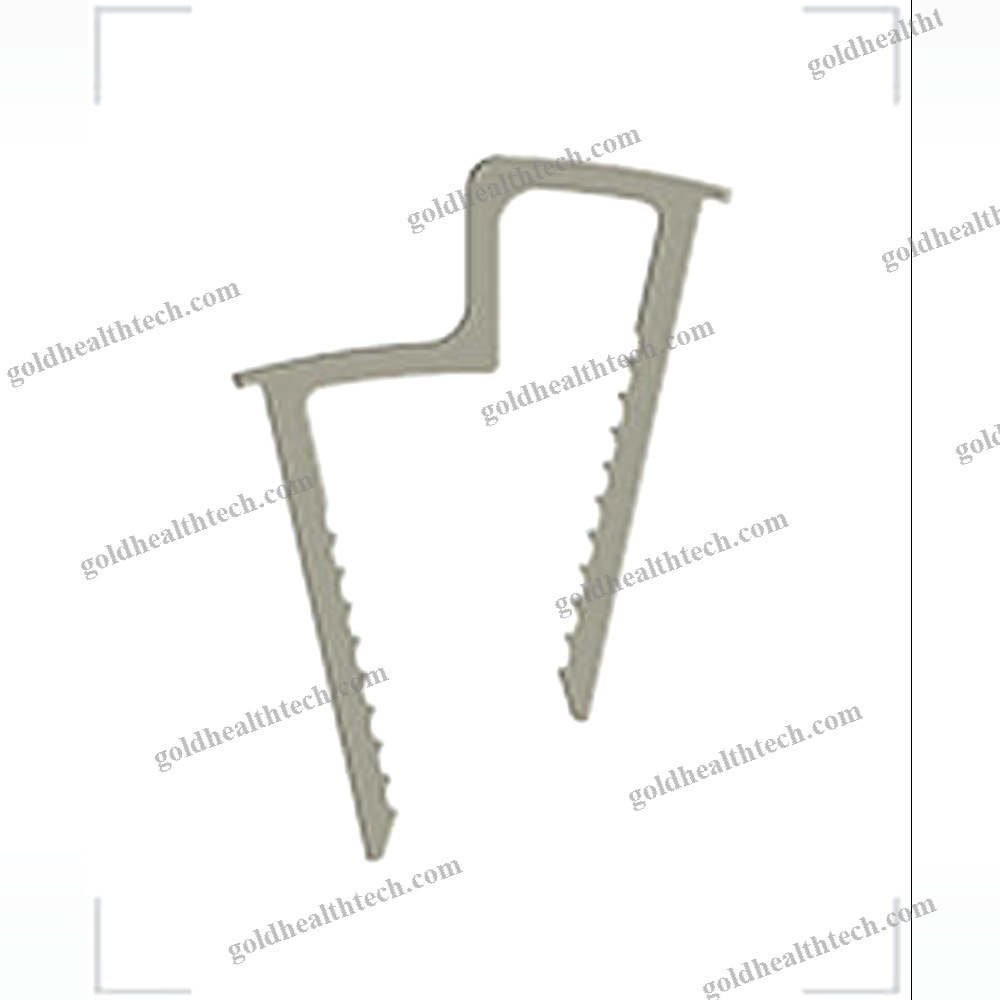

The DynaFORCE® Step system is accessible in five offsets and features an 18mm interaxis.Step 1

Exposure and Incision

Parallel to the peroneal tendons, an incision is made lateral to the calcaneus. Expose the calcaneus by dissecting the soft tissue.

Note: Ensure that the sural nerve is identified and safeguarded.input:
output:STEP 02

OsteotomyPerform an osteotomy by cutting through the calcaneus and reaching the opposing cortex with a saw.

Option: CrossRoads cut guide is available to pre-set anterior holes and provide a guide for the saw. Maintain the positioning pins in their current position to facilitate the identification of the fixation holes.

Caution: Prior to osteotomy, only drill anterior drill holes.
