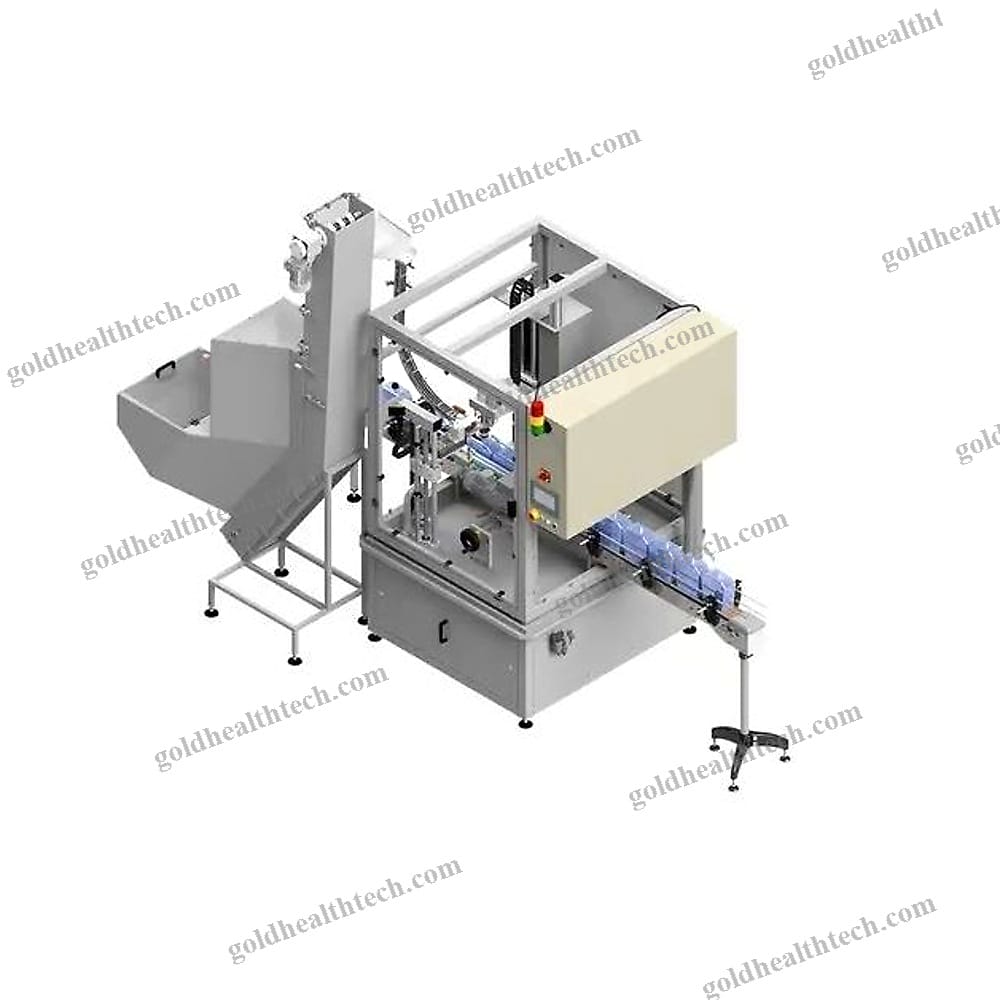

Bottle Capping System

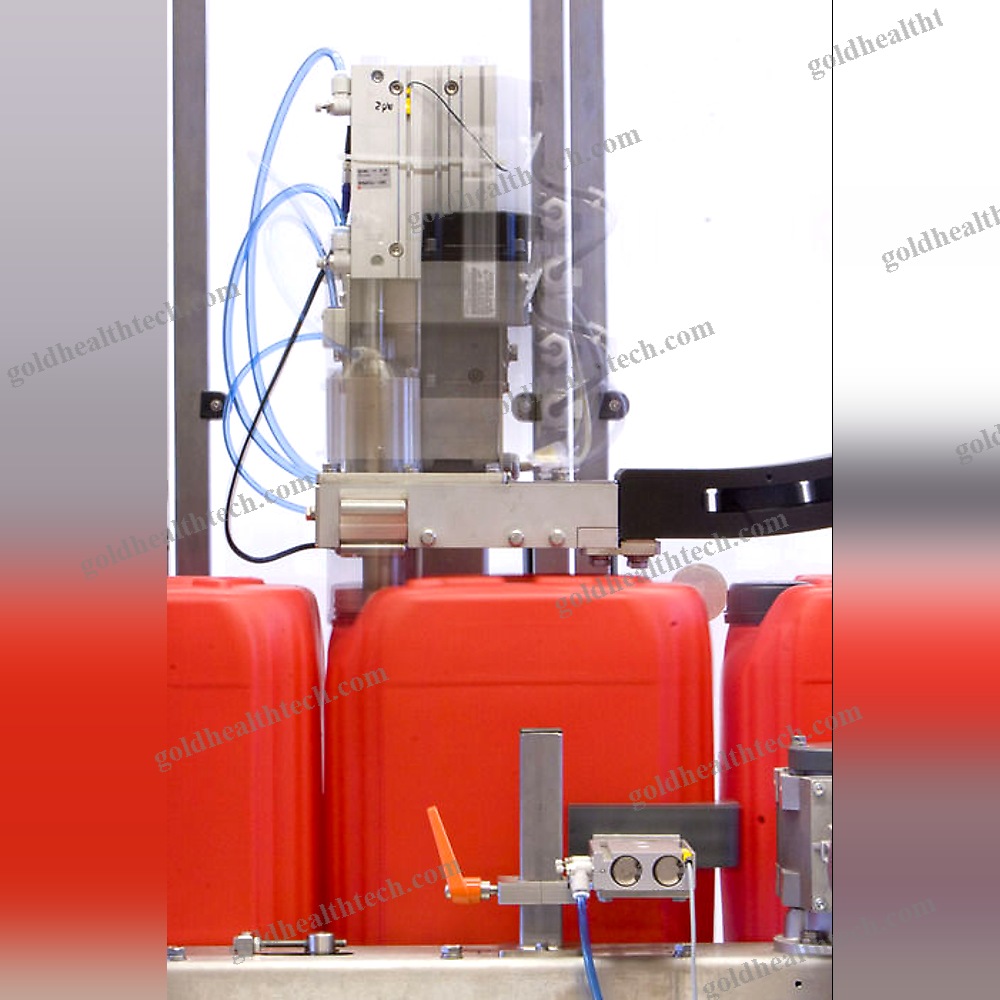

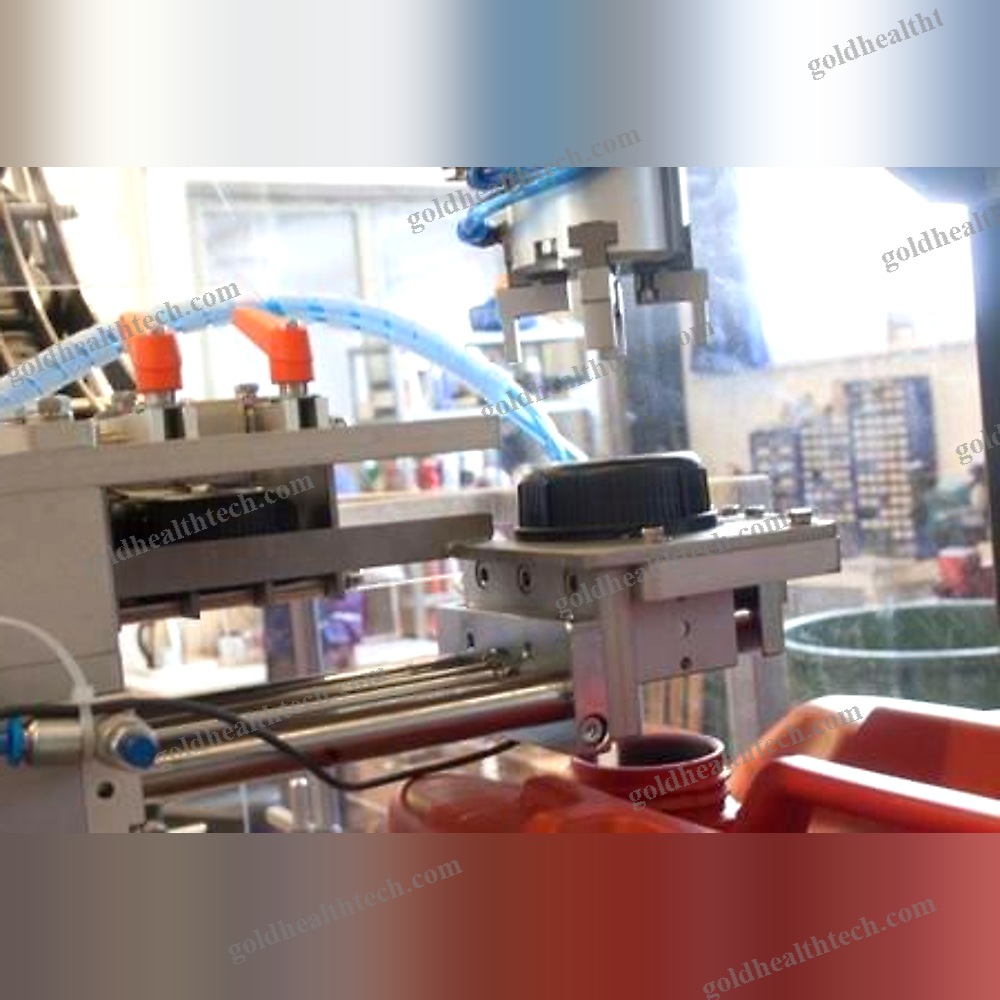

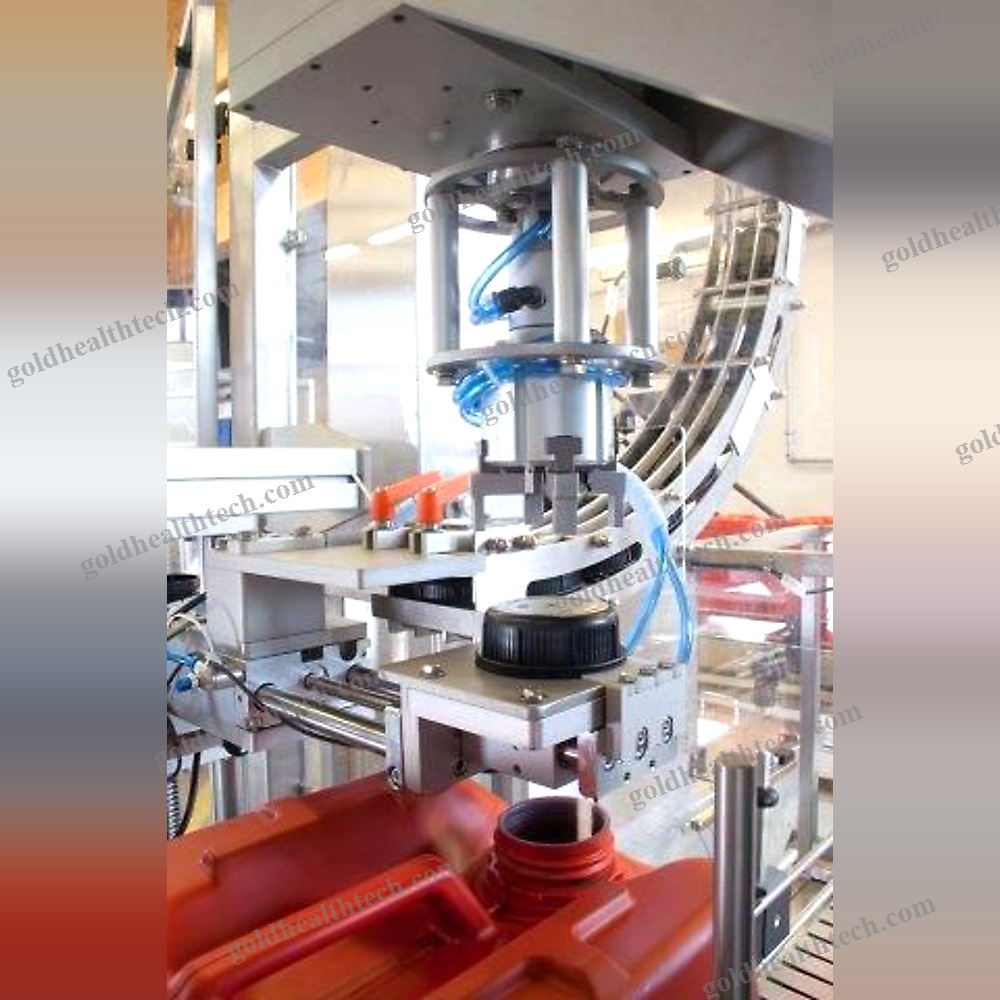

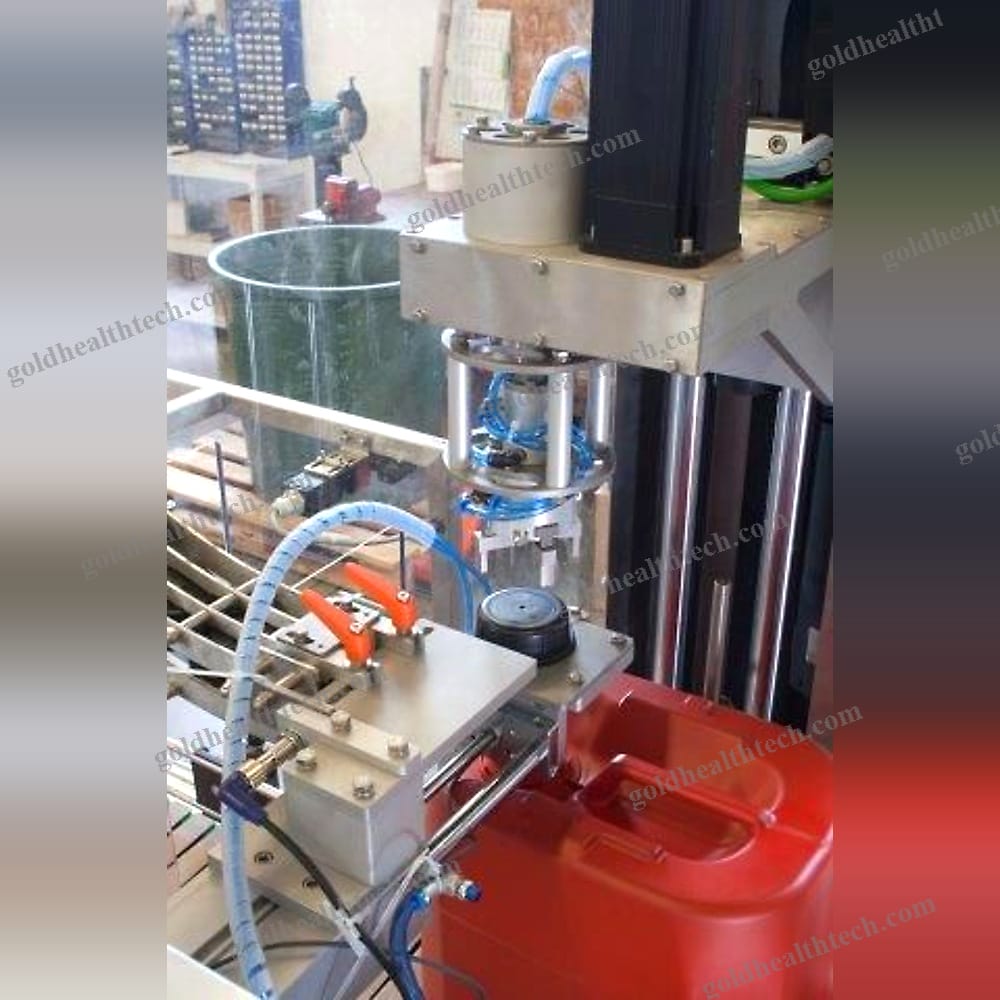

This is the fundamental version of automatic single-headed capping machines. The bottles and canisters are halted beneath the capping head with the assistance of sidebands. The caps are aligned with a band feeder or a rotation aligner and then transported on a conveyor to a pick-and-place station. The cap is then passed under the capping head. The capping head is secured to the cap and the screw torque is adjusted accordingly. The machine has a capacity of 1,500 bottles per hour.

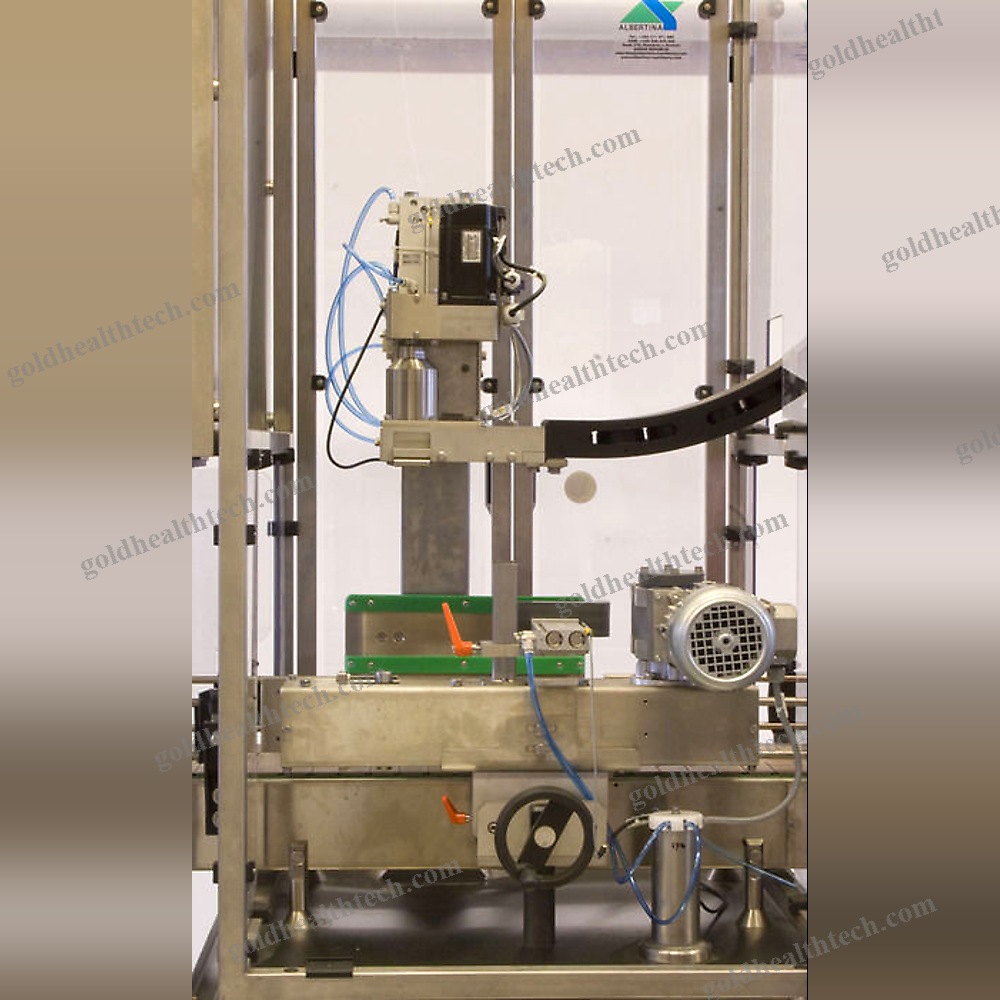

A machine frame is mounted on adjustable feet that can be adjusted in height.

A stainless steel conveyor with a top slat band made of either stainless steel or delrin, as well as adjustable guide rails.

The packaging under the closing head is halted by input and output gates.

The rotary caps orientator is located on the top of the machine.Caps chute equipped with a sensor that detects the presence of capsSelect and position the deviceCapping head with adjustable torqueSensor for detecting packaging in the sealing compartment Sensor for detecting the full outfeed conveyor Control panel with a touch screenformat parts for one type of bottle and one type of cap

CE safety guards
Cover inventor with tray.Side belt system for preventing bottles from falling below the capping head. ATEX configuration. Chemical proof configuration.Connection via a remote location
