Bed Transfer Trolley

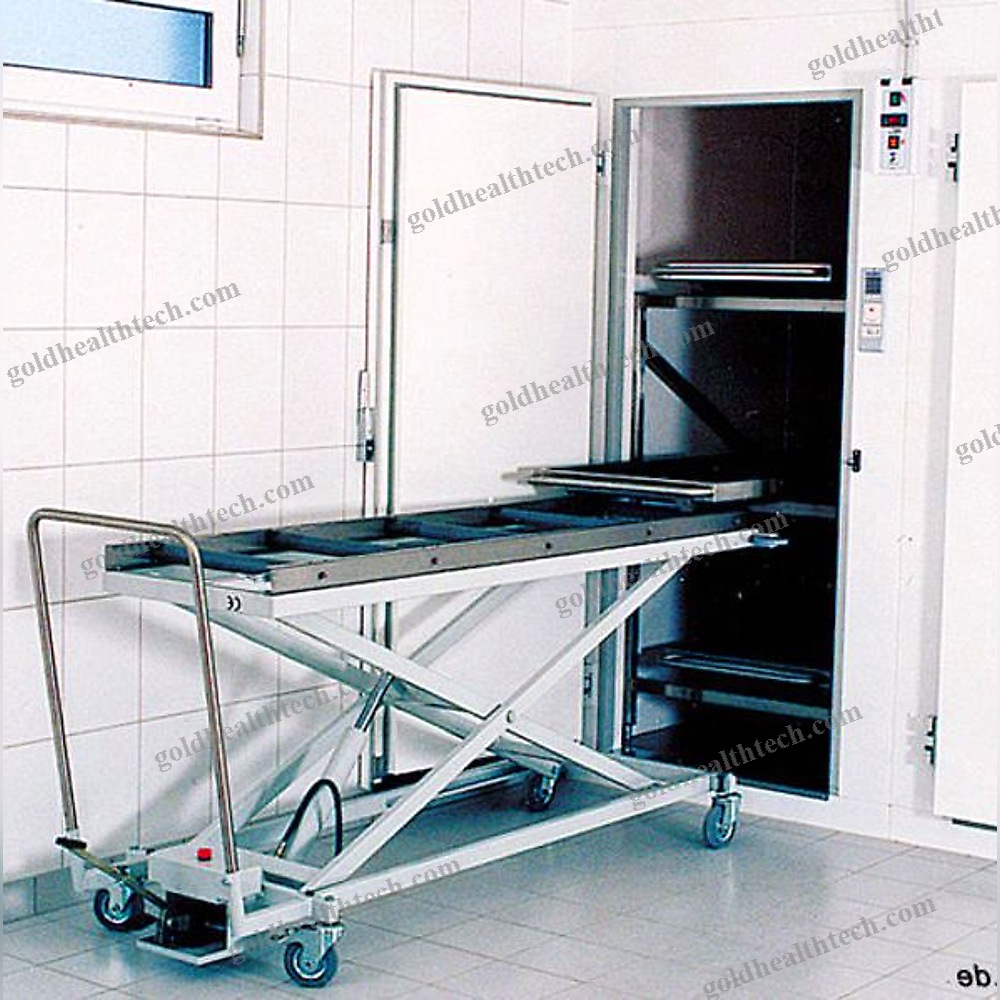

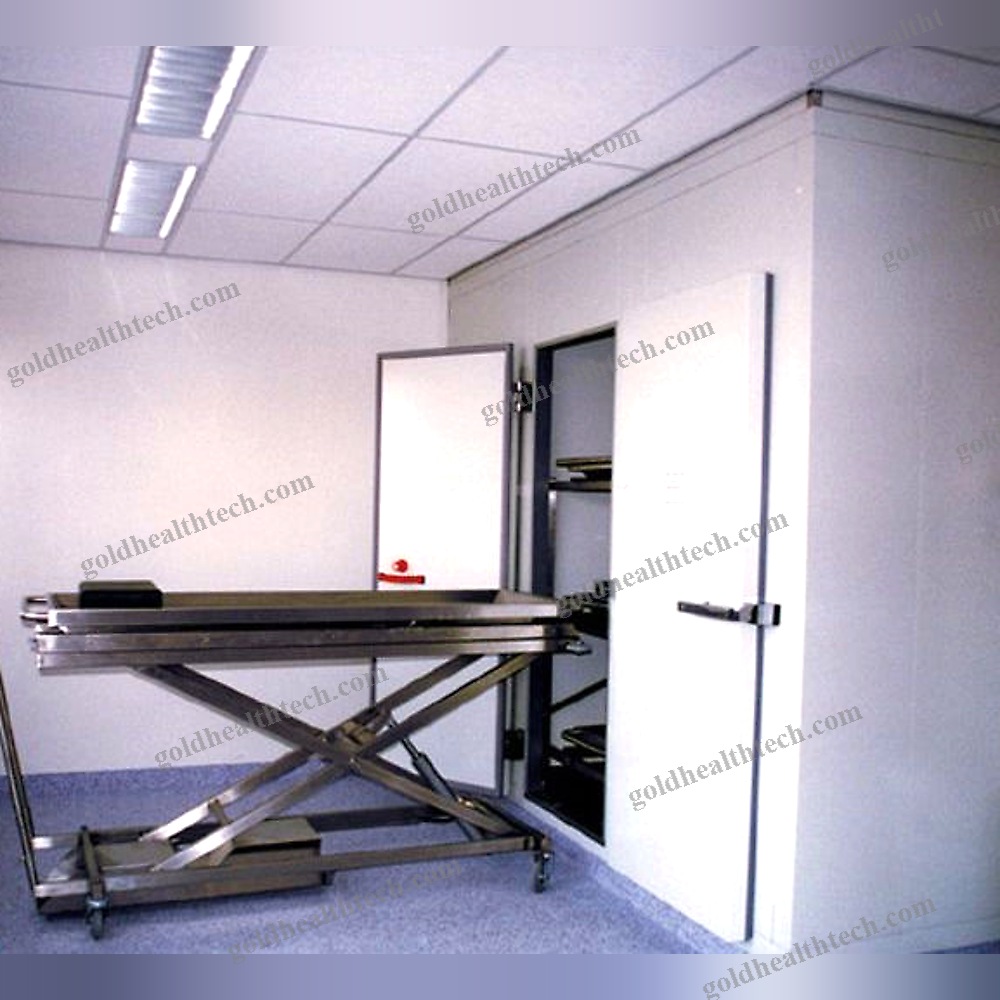

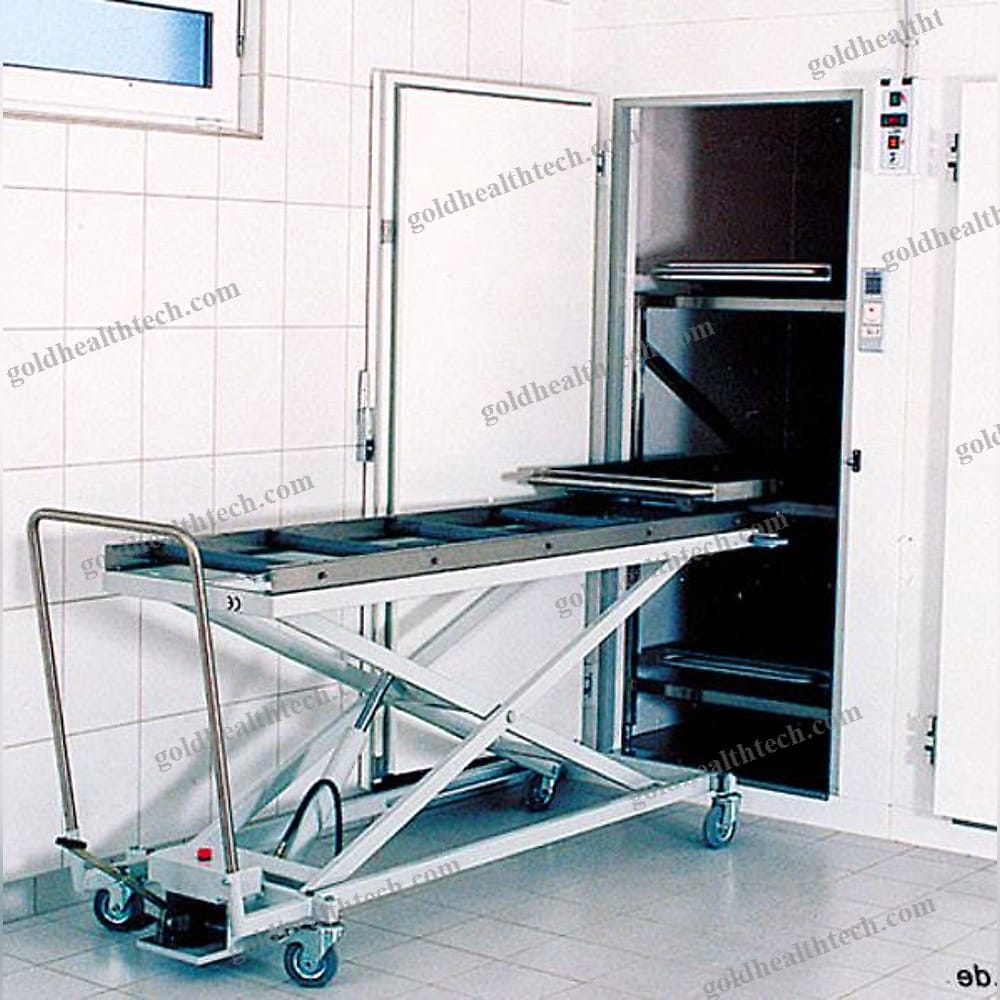

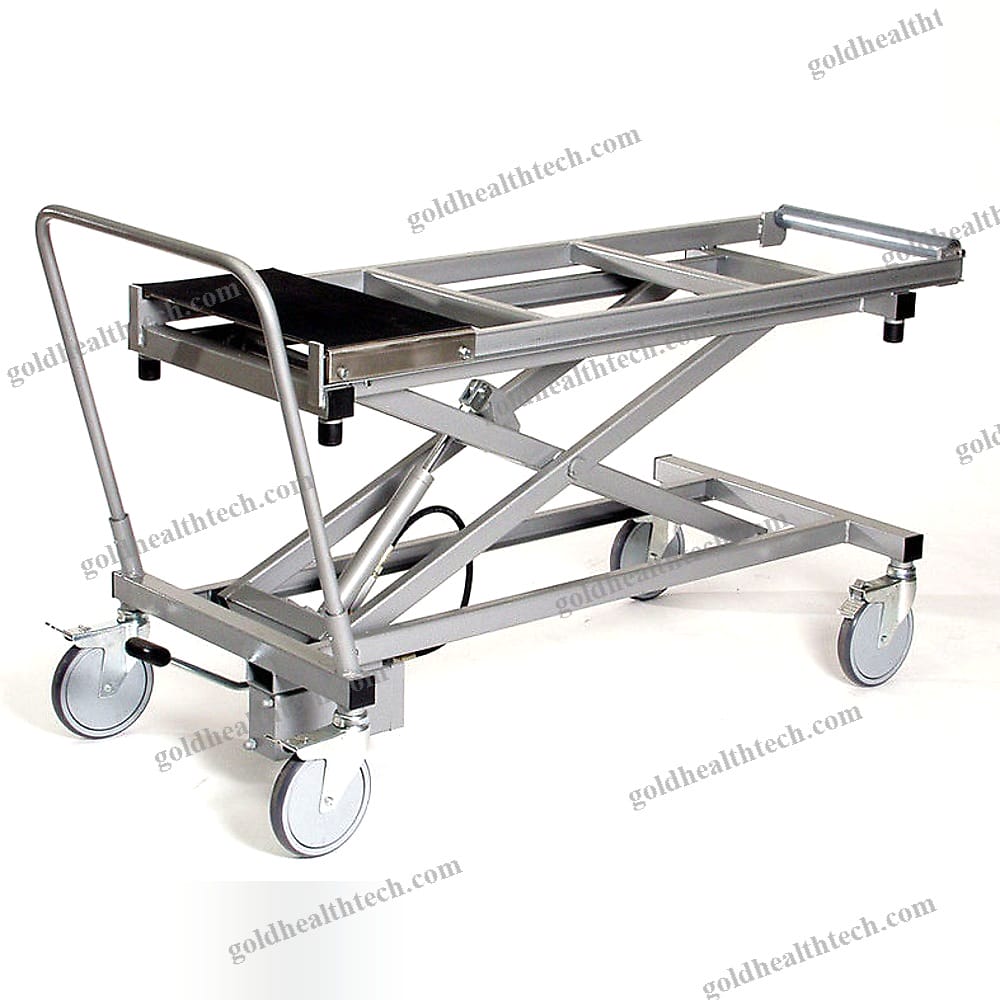

Featuring a torsion-resistant steel frame structure that is both lightweight and robust, the structure is grey-painted and features a smoothly operating, integrated hydraulic unit for food-actuated vertical adjustment. The lift-and-transport truck is provided with four steerable wheels, two of which are lockable, and one that allows for direction-specific locking. The wheels have a diameter of 200 mm and are equipped with special ball bearings that are permanently lubricated and maintenance-free, ensuring a completely silent operation. The HTW 50/050 has been specifically engineered for the transfer of coffins from the funeral car and/or for the transportation of patients within hospitals. The effortless operation and shunting are facilitated by the exceptionally low dead weight. A unique valve guarantees consistent lowering under a variety of loads. Stainless steel profile tracks and a sliding carriage that is both movable and fixable are included in the upper construction. A carrying roller is located on the front of the coffin to facilitate the transfer of the coffin into or out of funeral cars. The slight handle may be eliminated.

The model is also available in a stainless steel version.input:
output:TECHNICAL DATADimensions of the lowest position: W/D/H: 1700 x 710 x 465 mm.The dimensions of the highest position are as follows: 1700 x 710 x 1265 mm in width, depth, and height.

Maximum weight capacity: 250 kg

Dead weight: approximately 85 kilograms

Paint color: grey
