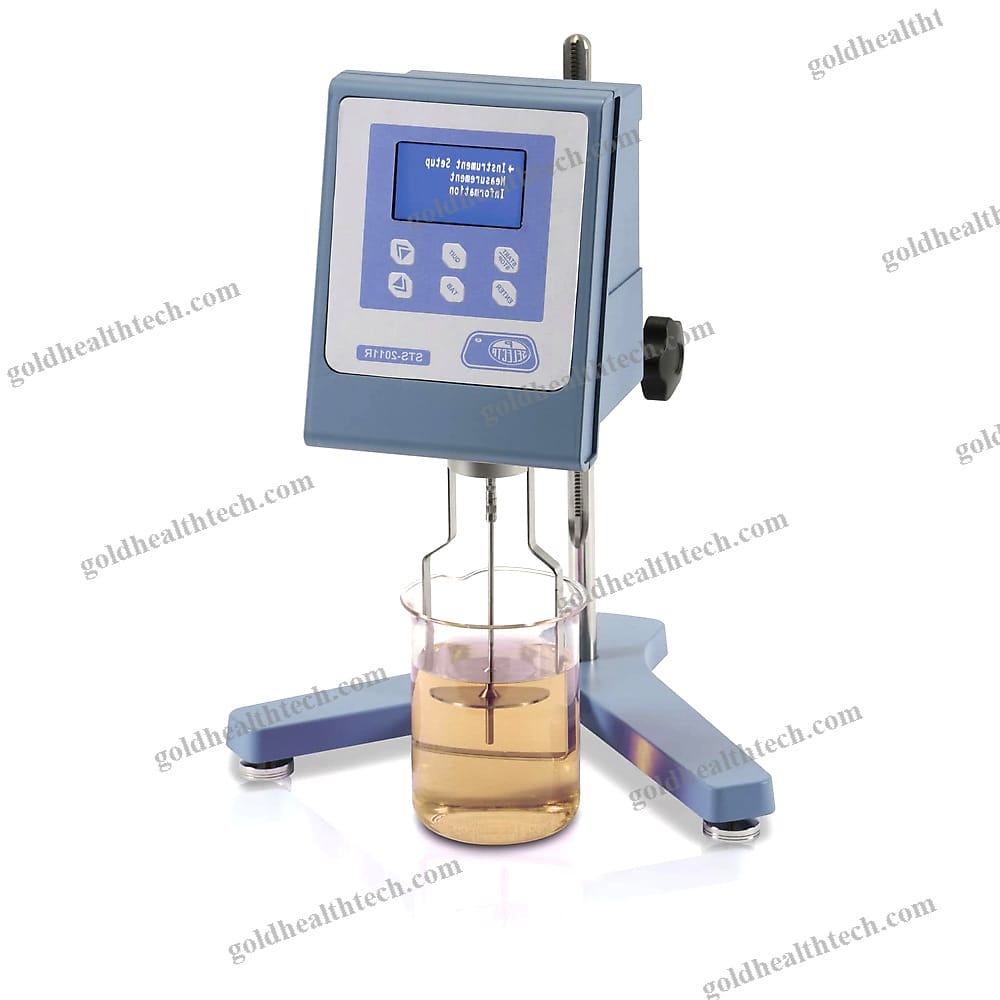

Automatic Viscometer

Model with Temperature READOUT, SHEAR RATE MEASUREMENT, AND SHEAR STRESS.FEATURES

There are ten distinct language options.

Parameters and results are displayed on a liquid crystal display.

Display of parameters:

- Selected speed:......................d.p.m.

Spindle that has been chosen

- Viscosity result: cP (mPa-s) or cSt.

- Percentage of the base scale

- Temperature of the sample: °C or °F.

- Deformation ratio (utilizing a specialized spindle)- Torsion force (utilizing specialized spindles)

- Density (user input) The density of the material is specified in grams per cubic centimeter.

This instrument ascertains both absolute and relative viscosity.

Data can be modified between S.I. and C.G.S.

By scanning at varying speeds, the correct operation point is automatically verified.Detection of any fault will trigger an automatic alarm.

An audible and visual signal is used to detect and indicate off-scale behavior.

To prevent spindle vibrations, the speed is controlled by a step.

The user is responsible for the calibration.

There are 18 predetermined speeds, ranging from 0.01 to 200 r.p.m.

The operator has the ability to choose any speed within this range.

USB port.

Surge protection for mains power.

Ten memoirs of operational programs. input:
output:TECHNICAL INFORMATION

Temperature range: -- -40°C to +300.0°C (- 40.0°F to +572.0°F).

- Resolution in degrees Celsius: 0.1 degrees Celsius (0.1722 degrees Fahrenheit).

- Accuracy in degrees Celsius: ± 0.1 degrees Celsius.

- Probe type: Pt 100.

Direct results in cP(mPa-s) or cSt.: STS-2011 L & R models.

Direct results in Poise (Pa-s) or St.: model STS-2011 H. Precision: ±1% of the base scale.

Supplied complete with:

- Anti shock carry case.

- Main unit.

- Support base.- Spindle protector.- Spindle support.

- A set of spindles (model-dependent) (refer to the table).
