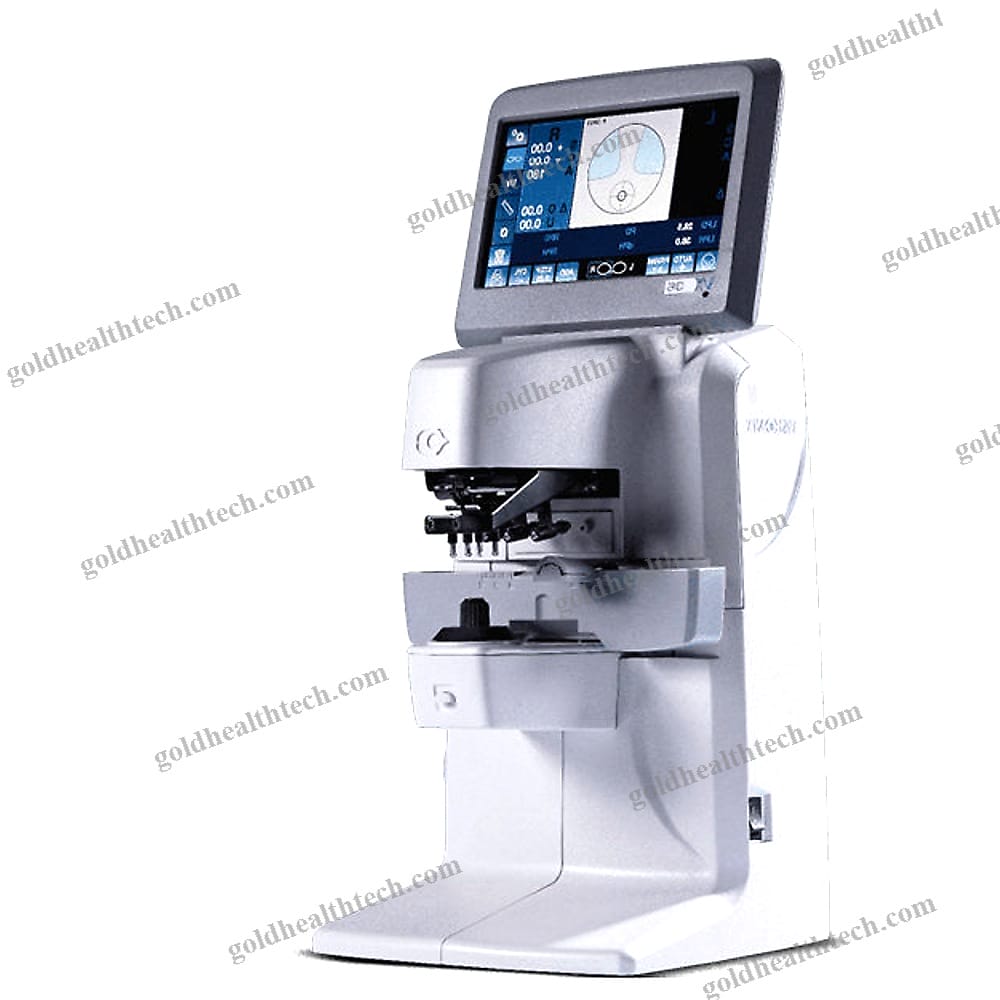

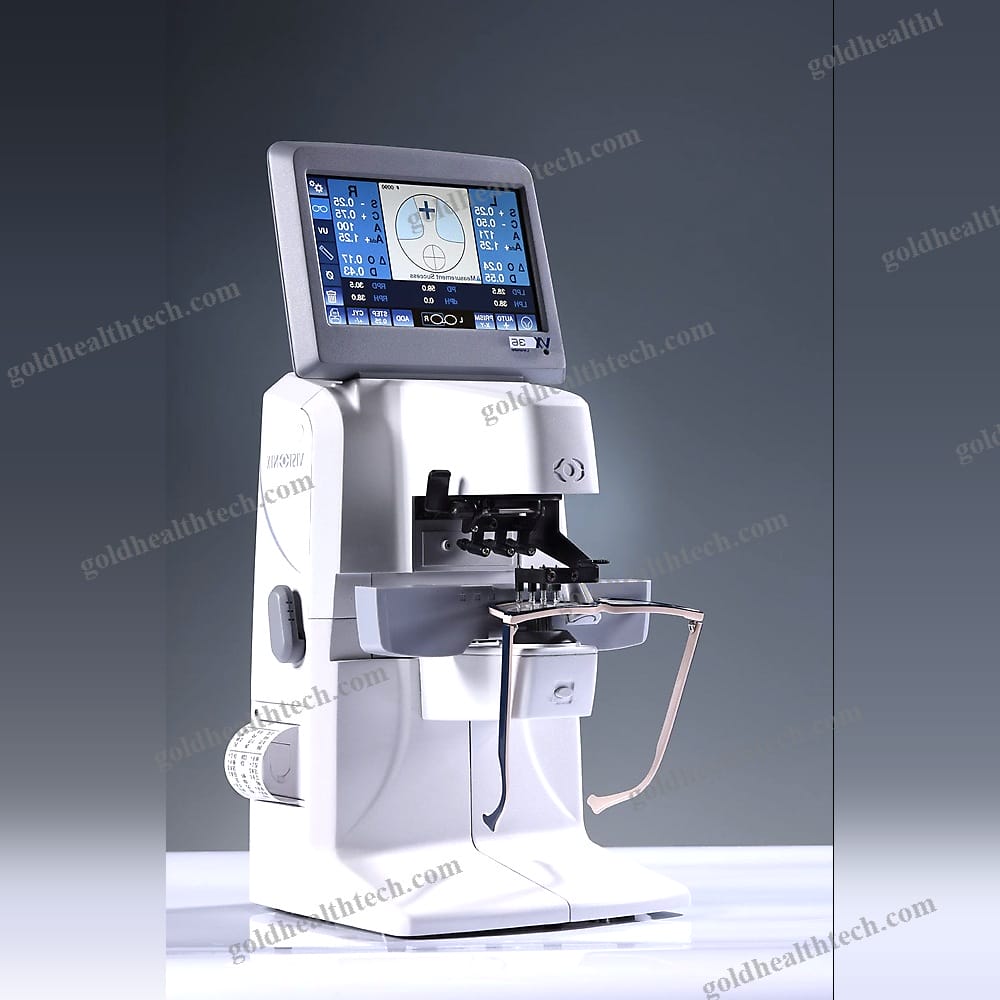

Automatic Lensmeter

This lensmeter generation enables the user to perform lens measurements with ease and simplicity by measuring the rate of blue light transmission and providing an intuitive user interface.input:
output:UV and blue light measurements

The VX 36 is capable of measuring UV and blue light with remarkable precision and ease.input:
output:Progressive lens detection that is automatic

The operator's experience is simplified and intuition is enhanced by the VX 36's ability to immediately identify progressive lenses that are being measured.input:
output:Enhanced ergonomics

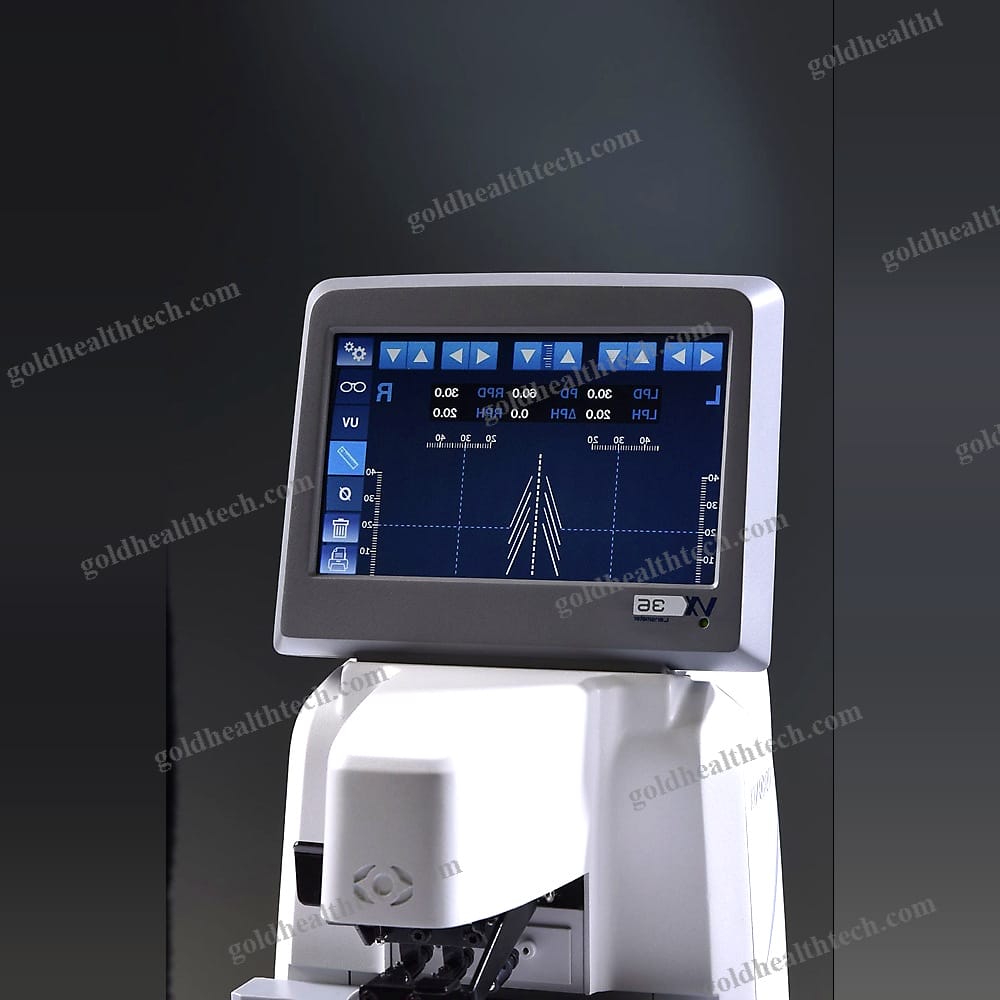

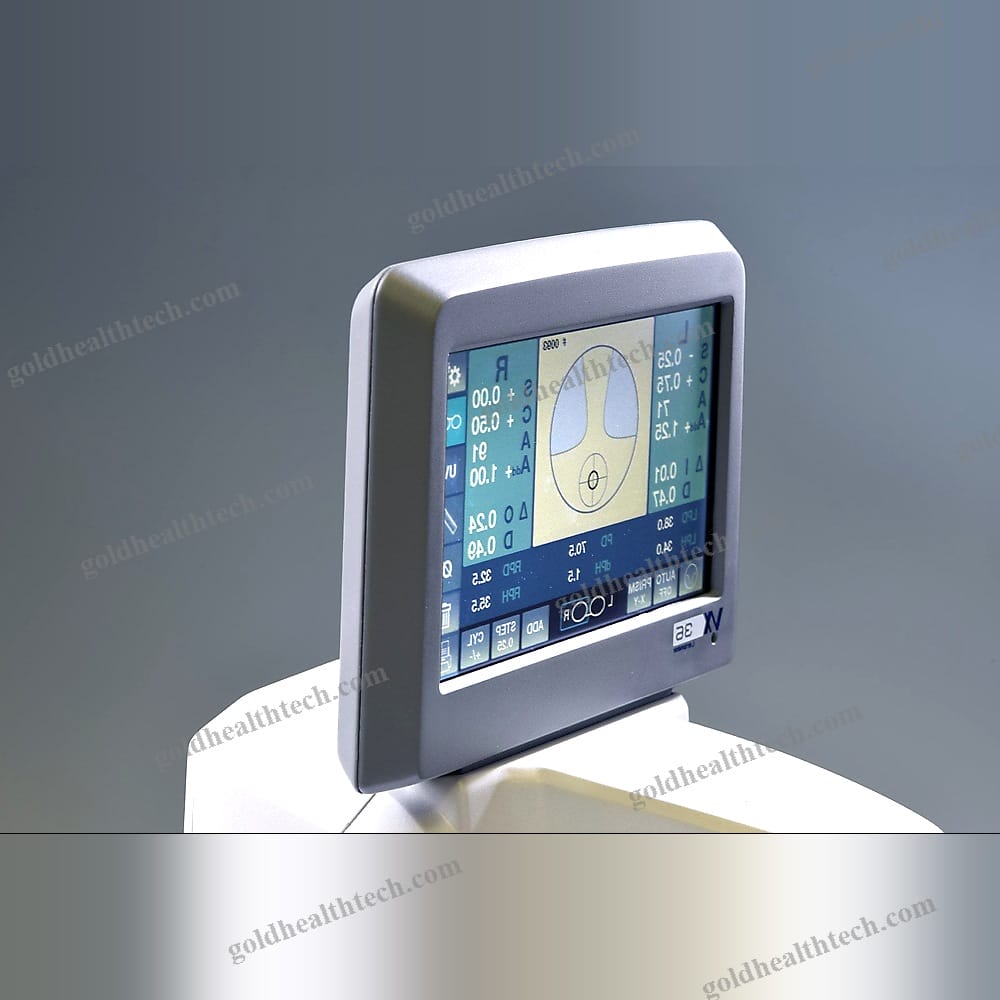

The VX 36 is equipped with a 7 articulating color LCD touchscreen that is adjustable to ensure the user's comfort.input:
output:Technical Specifications

Dimensions

WIDTH: 471 mm (18.5 in)

DEPTH: 233 mm (9.2 in)

HEIGHT: 203 mm (8 in)

WEIGHT: 4.5 kg (9.9 lbs.)input:
output:Range of measurement (WF)

Spherical Power Range: 0 – ±25 D (step 0.01, 0.06, 0.12, 0.25).Spherical Power range (contact lens): 0 – ±25 D (step 0.01, 0.06, 0.12, 0.25).Cylinder power range: 0 to ±10 (step 0.01, 0.06, 0.12, 0.25).

Axis: 0° to 180° (step 1°)Addition power: 0 to ±10 (step 0.01, 0.06, 0.12, 0.25).Prism Power: 0–20 (step 0.01)

PD: 42mm to 82mm GeneralTouchscreen display: 800 x 480 pixelsLED: Color LCD

Printer: 57 mm thermal printer

Power: 35W AC 100-240V 60/50Hz Standards: CE LVD
