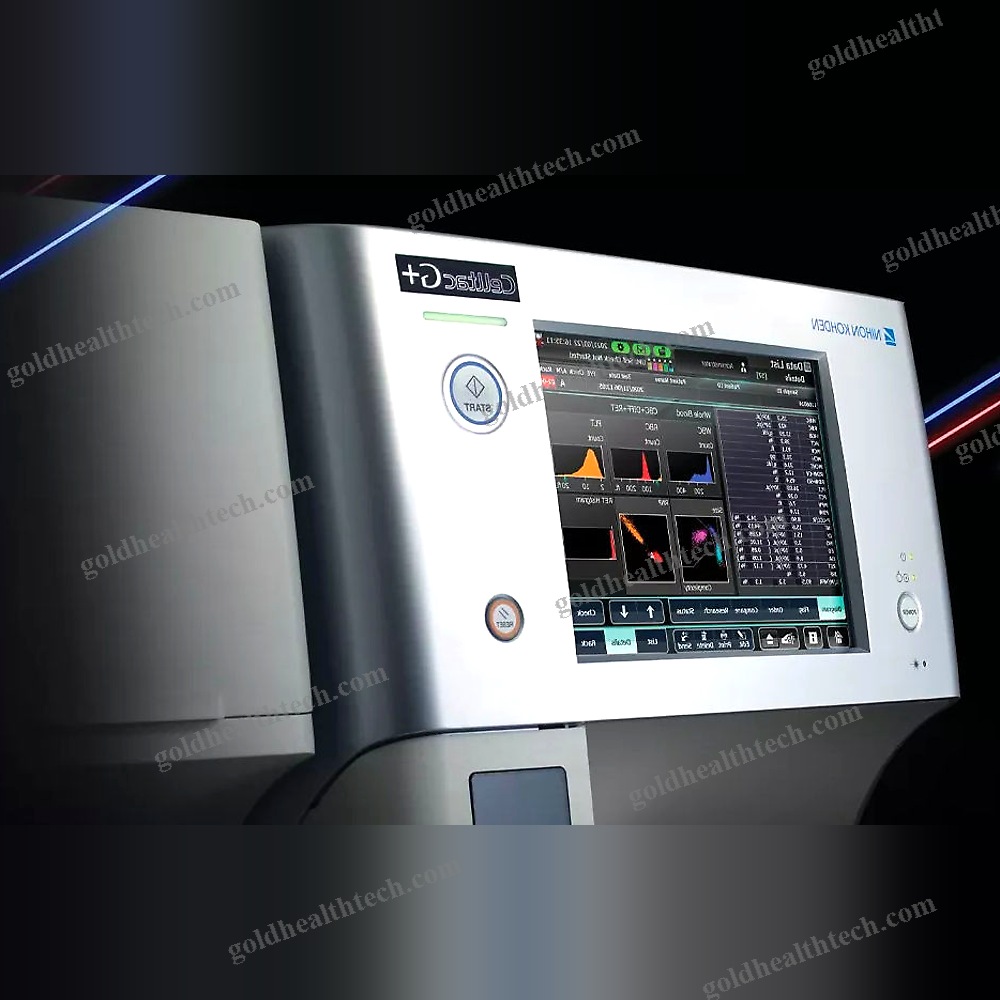

Automatic Cell Counter

Two types of lasers are employed.

The fluorescence is detected by excitating stained blood cells with a blue laser (488nm). Reticulocytes are identified by our proprietary algorithm.

The red laser is used to measure the 5-part difference and to determine the size and granurarity of each blood cell by analyzing the scattered light.

Blood cells are arranged in a straight line by sheath flow in the measurement path, ensuring that test results are precise.



DynaHelix Flow Technology



Sheath flow arranges blood cells in a straight line, while swirling flow pushes cells out and reduces the "re-entry" of blood cells that have passed the detection aperture.input:
output:
Additional characteristicsinput:
output:
90 tests per hour for CBC+5-part diff.
HL7 protocol is utilized for the purpose of connecting to a library information system.

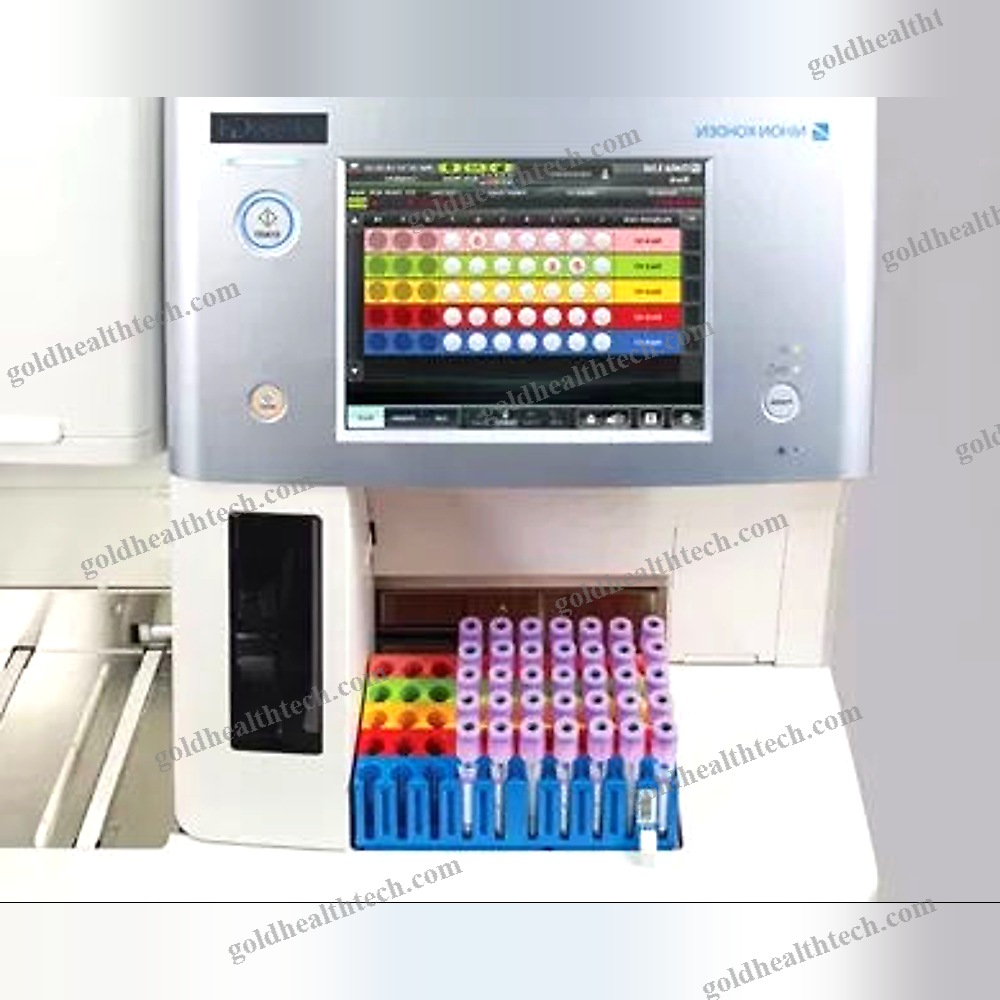

A convenient barcode reader operation.Sample rack loading system that is seamless, with a capacity of 10 samples per rack.

A smart ColoRac Match system that facilitates the collection of samples.

Function for automatic sample mixing.

The Westgard multirules are currently in QC mode.Fundamental specificationsThirty-one parameters that are reportable WBC, NE%, LY%, MO%, EO%, BA%, NE, LY, MO, EO, BA, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PCT, MPV, PDW, P-LCR, P-LCC, RET%, RET, IRF, LFR, MFR, HFRinput:
output:Eight research parameters IG, Band, Seg, IG%, Band%, Seg%, Mentzer Index, and RDWIinput:
output:With the autoloader, the throughput for CBC+DIFF is 90 tests per hour, while CBC+DIFF+RET is 55 tests per hour.input:
output:The maximum capacity of internal memory is 50,000 bytes.
