Automatic Cell Counter

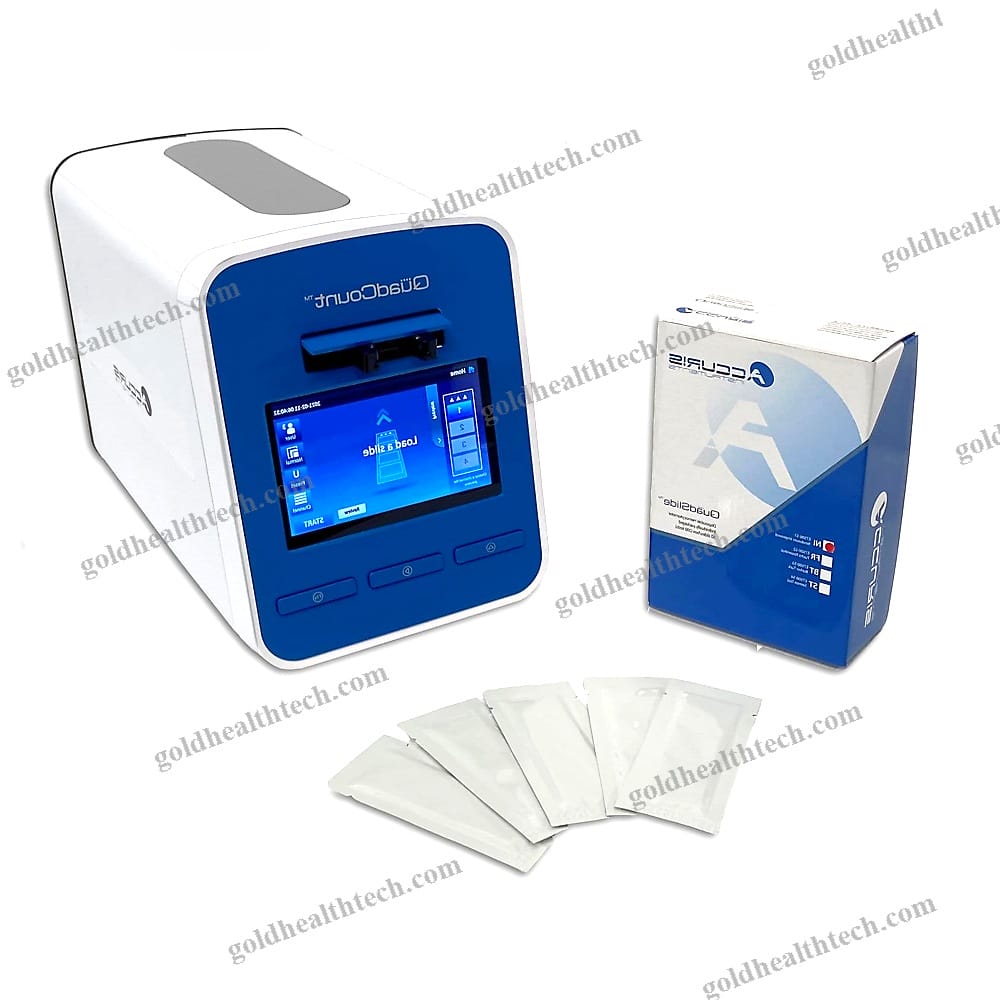

The Accuris QuadCount™ enhances the straightforward method of brightfield microscopy by employing a high-resolution CMOS detector, precision optics, and an LED light source. A motorized XYZ positioning stage that is finely tuned enables the capture of multiple images and extra-fine focusing.input:
output: Results that are rapid, precise, and consistent Touch-screen interface and intuitive software QuadSlides™ are both cost-effective and convenient.

Sample volumes of up to 3.6 ul should be counted.Specifications

Optics - A high-quality 4x objective lensPixel Resolution: 2592 x 1944

Image Detection: A 5-megapixel CMOS sensorIllumination: Green LED (50,000-hour lifespan)Sample Volume: 20 ul (4 samples per QuadSlide)Maximum Counting Volume: 3.6 ul (24 image captures)Consumable Slide - QuadSlide, 4-chamber

Precise (100 sec), Normal (30 sec), and Quick (20 sec) are the following counting modes and speeds.

Dynamic Range - 1 x 104 to 1 x 107 cells per milliliterCell Size Range: 5 to 60 um

USB drive for PDF report data output

Size - 6.4 x 11.5 x 8.5 inches / 16.3 x 29.3 x 21.6 cm

Total Weight: 11 Pounds

Electrical - 50-60Hz, 115V or 230V.input:
output:The Accuris QuadCount offers numerous benefits in comparison to the manual hemocytometry method, with count speeds as fast as 20 seconds per sample. The sophisticated software reduces counting errors, improves efficiency, saves time, and eliminates human bias in dead/live determinations.input:
output:The QuadCount employs a distinctive disposable QuadSlide™ that is four chambered. Consumable costs can be reduced by processing four samples on a single slide, which is twice the capacity of standard 2-chambered slides. The inner surface of each chamber is hydrophilic and features an engraved grid pattern.
