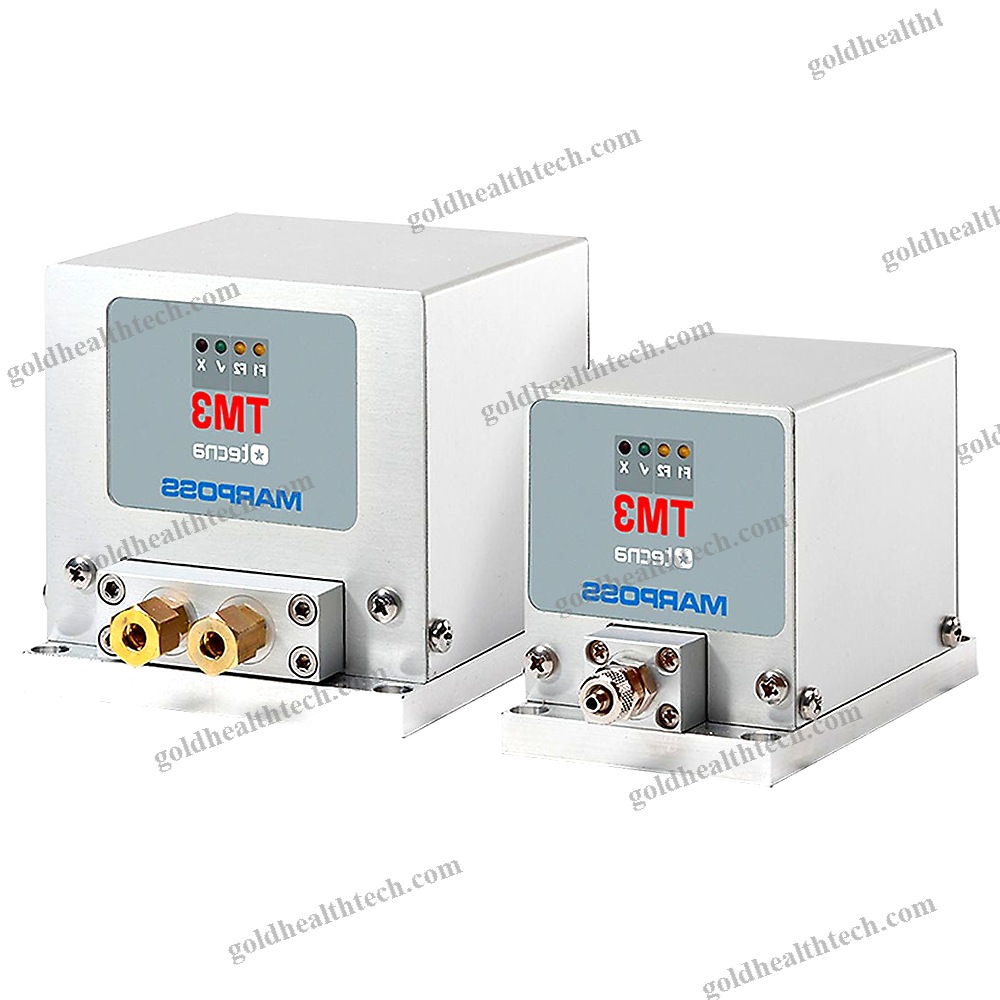

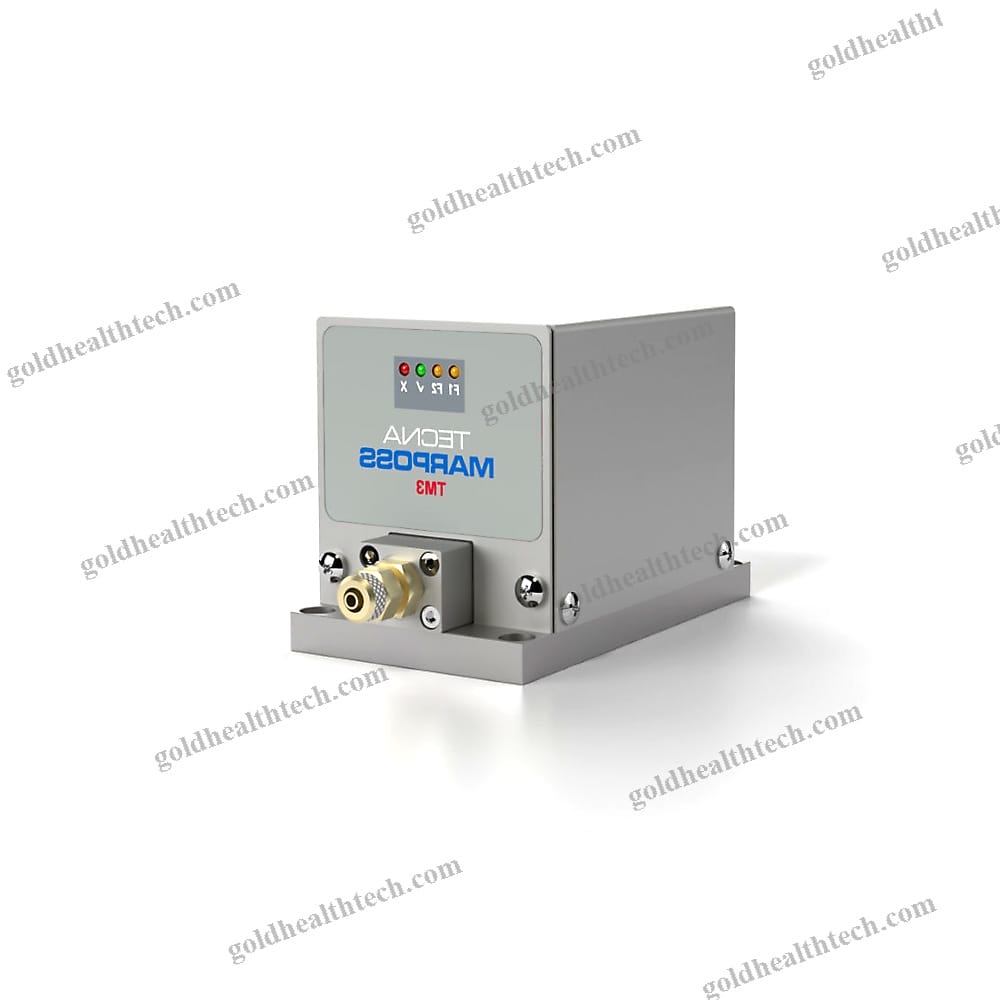

Absolute Pressure Decay Leak Tester Module

The DELTA TM3P is the pinnacle of traditional leak testing and the optimal solution for integrating a dependable and compact testing station into automated systems. Its compact size and exceptional performance make it the ideal choice.

The most effective solution for integrating a reliable and compact testing station into automated systems is Delta TM3P pneumatic modules, which are the pinnacle of traditional leak testing.

Minimizing superfluous volumes and enhancing the speed and sensitivity of the tests, this device is compact and devoid of a display, allowing it to be positioned in close proximity to the product being tested. It can also be connected to an HMI terminal that is equipped with a 4.3" touchscreen display and is accompanied by a specialized software.PERFORMANCES

The product is the optimal solution for both leak tests and flow tests on automated systems due to its high performance and minimization of size. Its exceptional measurement resolution and test accuracy enable tests to be conducted at an unprecedented pace, at times in less than one second.
Libraries for other PLCs, HMI viewers, and preloaded software to manage up to eight instruments are available upon request.

INTEGRATION

The TM3P is equipped with digital I/O interfaces for PLC connection, USB/RS485 for data collection and programming, and a software program that collects and manages test data on a PC.

This instrument can be connected and controlled by any PLC and interfaced to an HMI terminal that is equipped with a USB host, Ethernet interface, and serial lines.

The software manager allows for the collection and management of test data, as well as the establishment of parameters, programming, and SPC analysis of test data.

Absolute pressure decay tests: vacuum and pressures of up to 20 bar.High measurement resolution: up to 0.1 P
