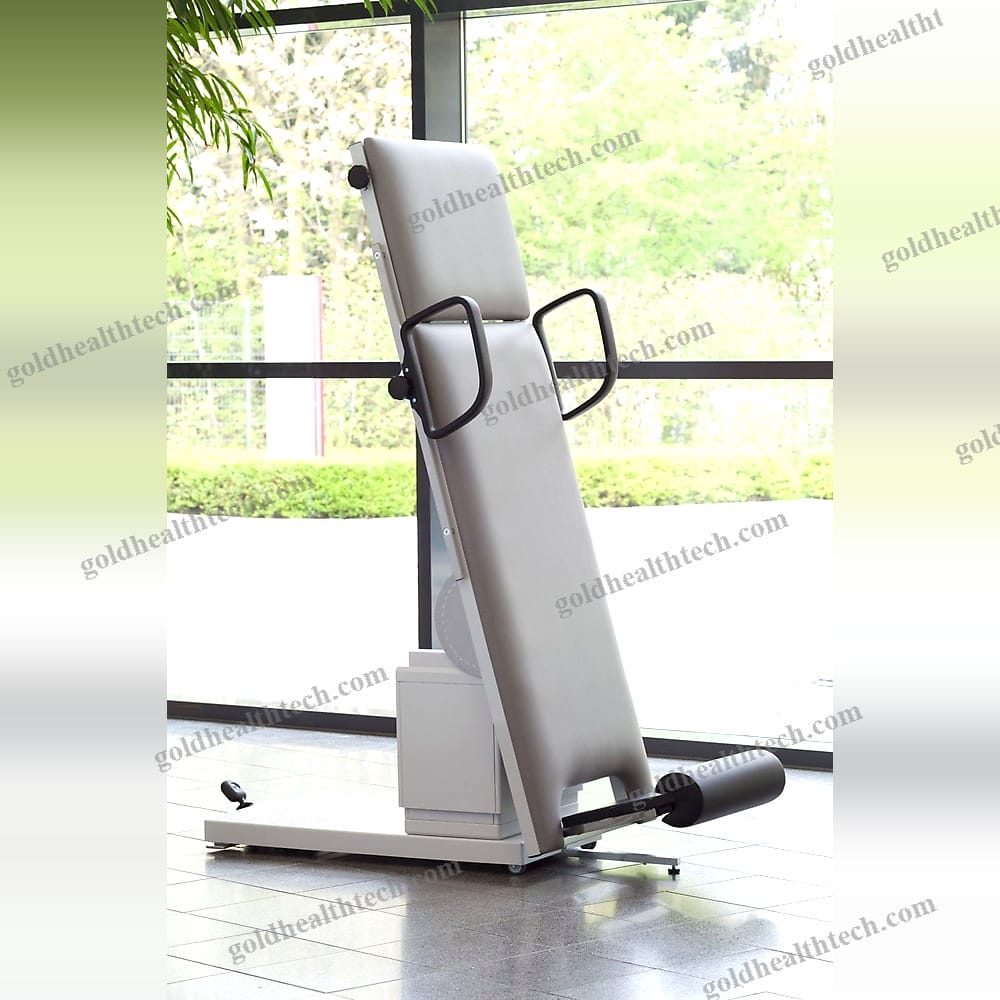

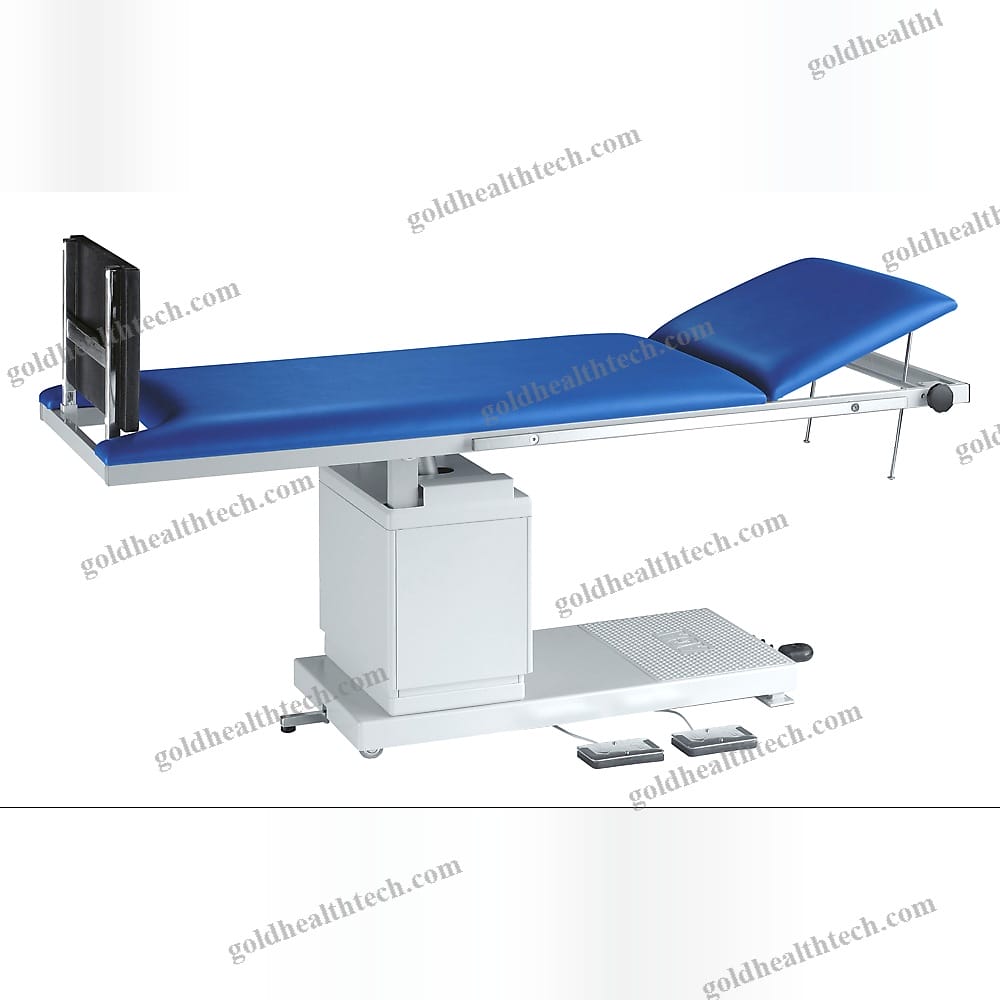

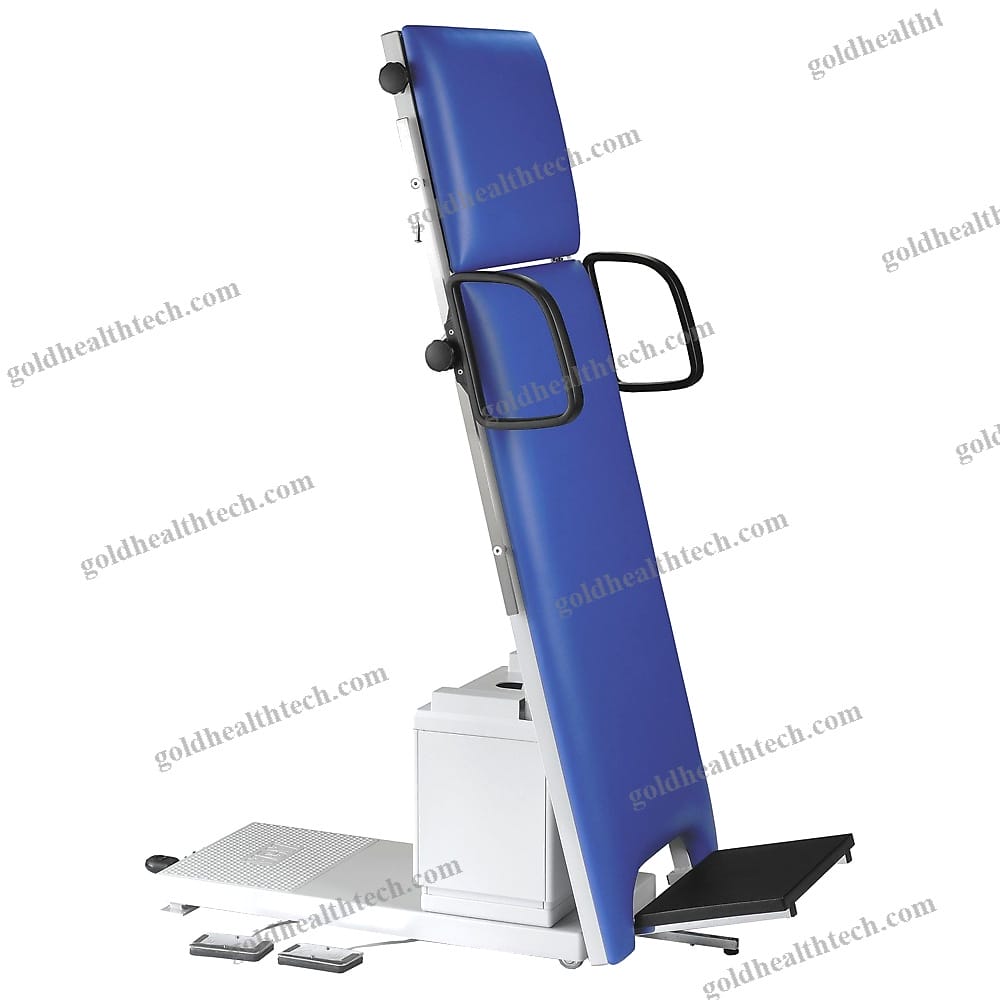

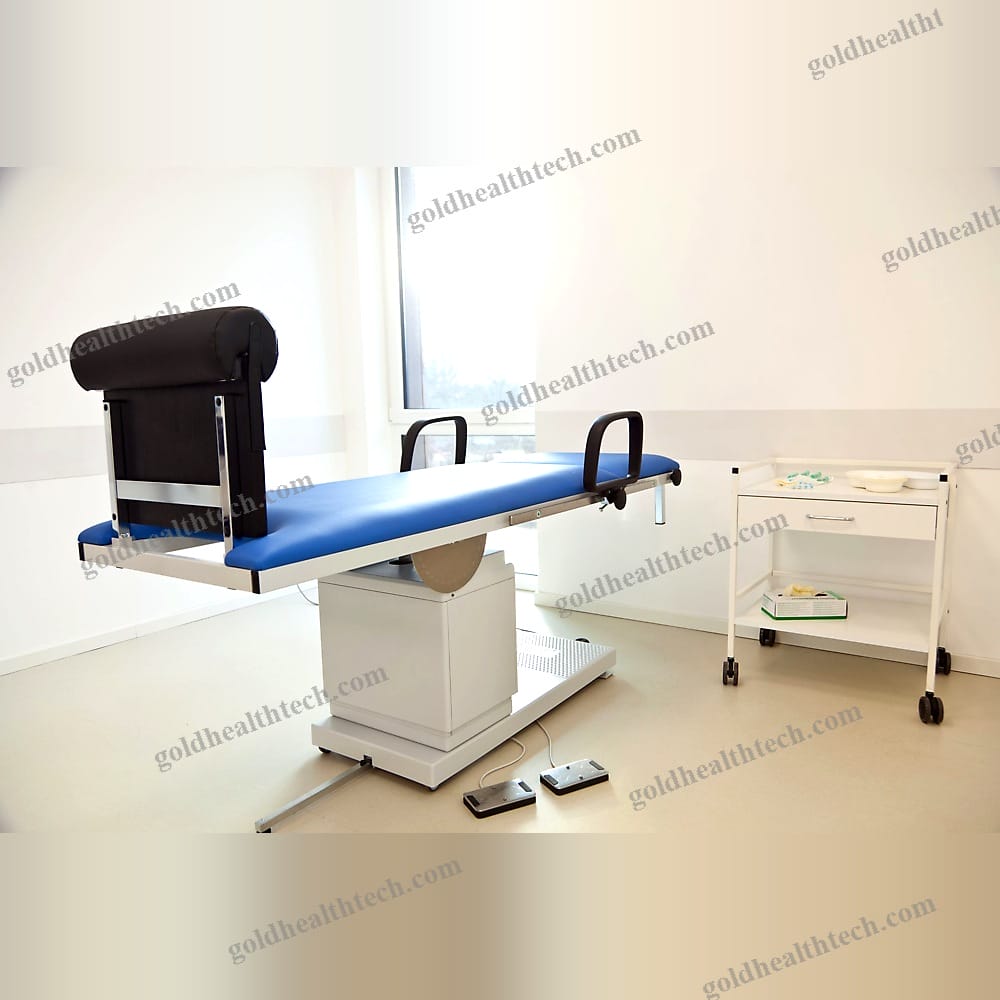

2 Sections Tilt Table

The 2-piece vein treatment tables from AGA Sanitätsartikel were specifically designed for dermatology and phlebology. They are pre-installed with an electric motor that facilitates tilt adjustment.input:
output:Characteristics

The phlebology tables can be adjusted from the almost vertical position (74°) to the horizontal position (0°) to the shock position (20° negative) if necessary, for example, in the event of a patient's collapse.

The gusset plates in the frame corners are responsible for the stability and robustness.

In the nearly vertical upholstered position, the base, which is equipped with leveling feet, in conjunction with the pull-out support rod, ensures a high level of stability even under load.

All other components, including the shock- and scratch-resistant covers on the column and base, are effortless to clean.

Each of the two upholstery segments (headrest and main surface) has a thickness of 64 mm.

Maintenance-free, splash-proof, and exceedingly quiet electric drives are employed to adjust the height and tilt. These drives are operated via foot switches or, at no additional cost, a hand switch. Key locks are included in the adjustment systems. Connection values for each motor are as follows: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.

The head section can be continuously adjusted up to +40° and secured with a handle, utilizing a clamping rod mechanism.input:
output:The standard configuration comprises the following:input:
output:A pair of standard surgical rails, 25 x 10 mm in dimensions, that are side-mounted and constructed from CrNi steel.

A pair of armrests with black rings, which include fastening clamps for use with standard surgical rails.

A black footboard with an anti-slip surface, dimensions of 490 x 320 mm, and a thickness of 15 mm, that is removable.

The foot switch(es).
