2 Sections Tilt Table

Standing boards, which are also referred to as therapeutic tilt tables, are capable of facilitating a variety of therapeutic techniques. In addition, they facilitate the patient’s continuous ascent from the shock or lying position to an almost vertical position. Consequently, these models are optimal for the treatment of neurological diseases, head and back injuries, and paraplegic patients.

The combination of the extra-large, removable footboard and the upholstery cutout at the foot end was developed for the tilting tables to ensure the patient’s physical and psychological safety during treatment and when transferring on and off.input:
output:Characteristicsinput:
output:

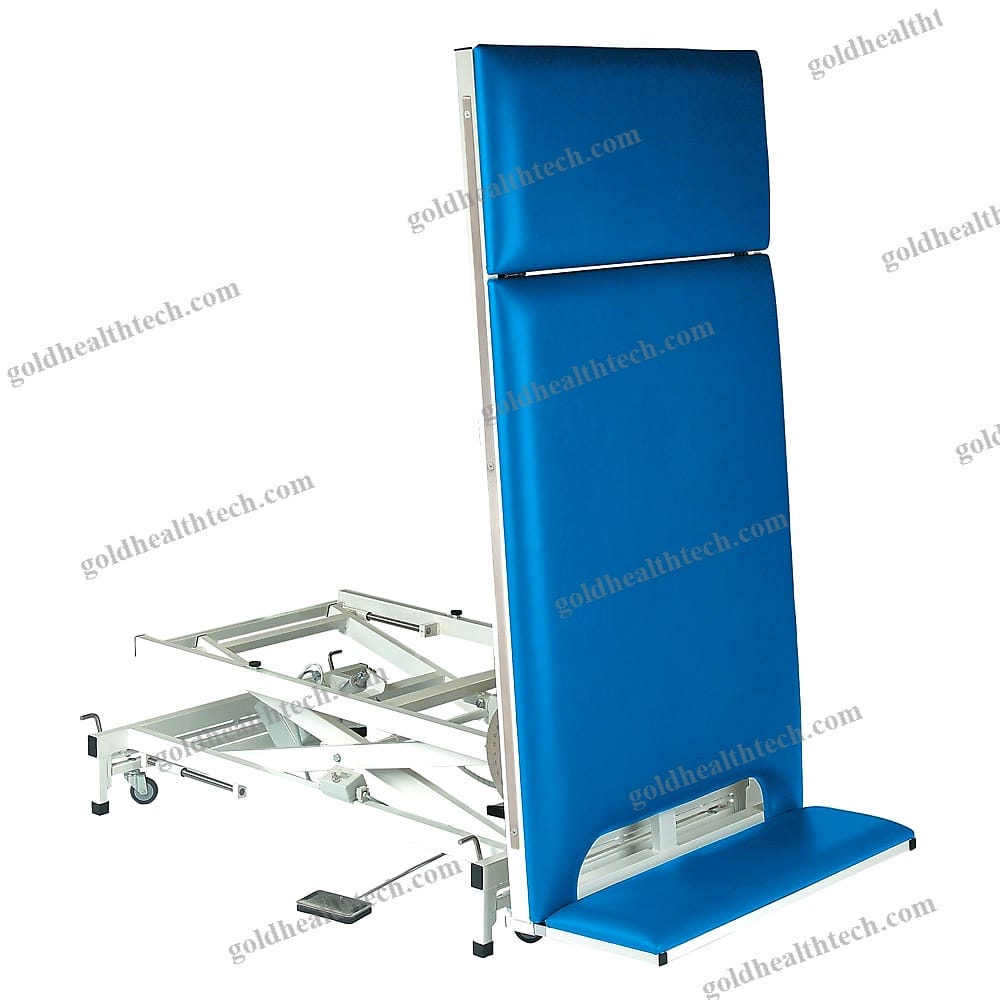

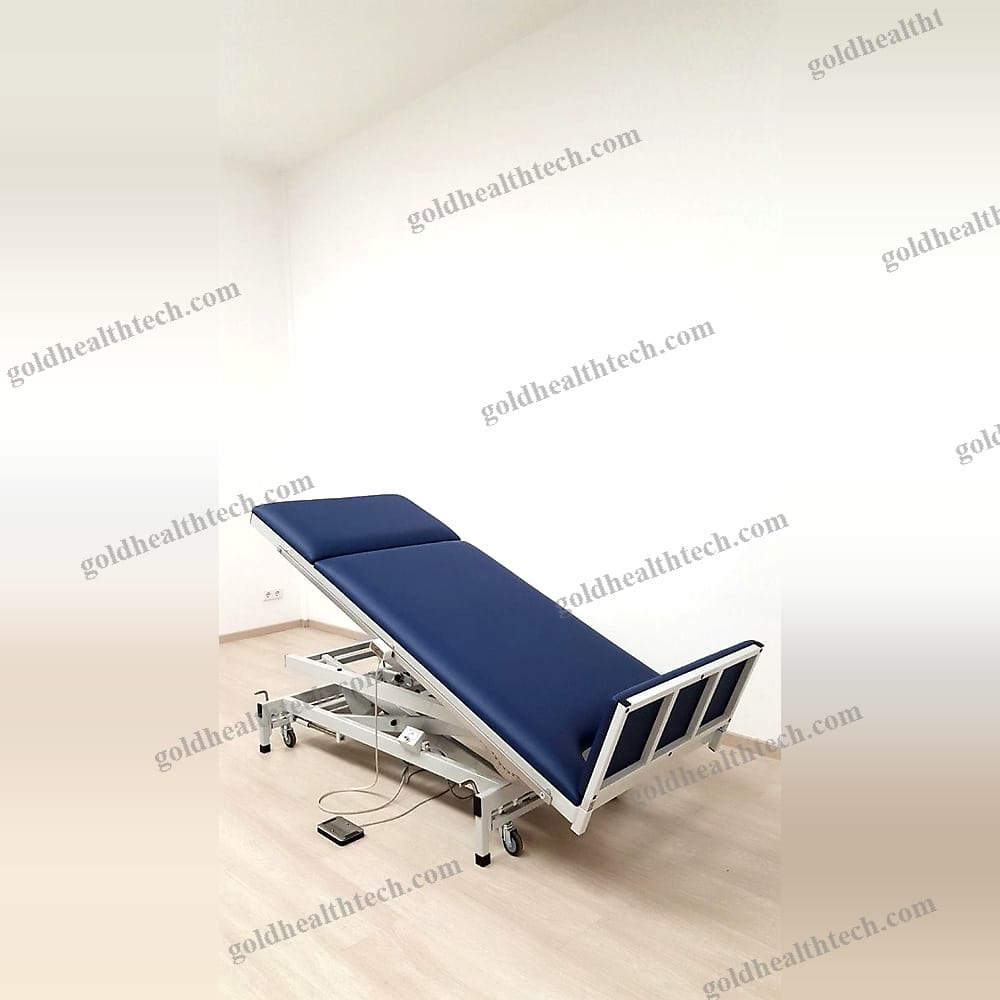

Electric motors enable the therapy tilt tables to be adjusted from a vertical position (90°) to a horizontal position (0°). A hand switch is employed to regulate the tilting, or a foot switch may be employed at no additional cost.

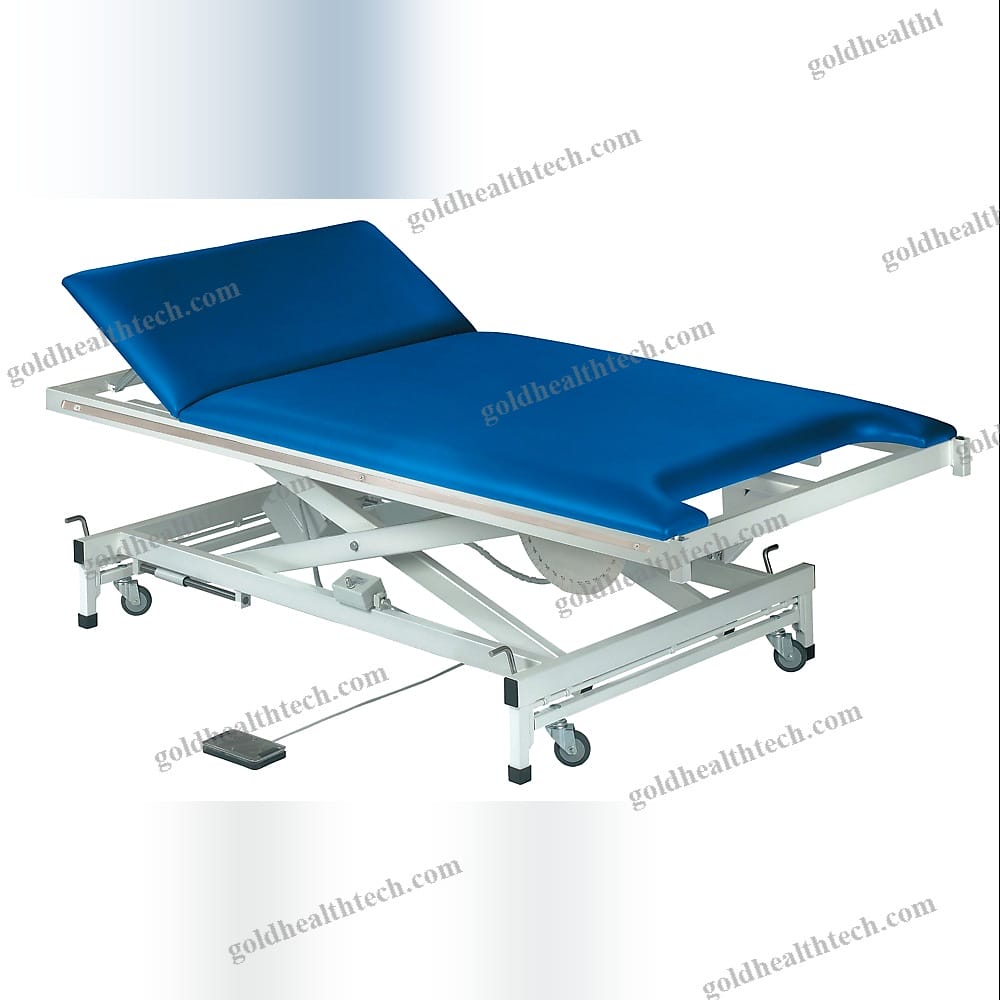

The electromotive height adjustment (520 – 960 mm, measured in the horizontal upholstery position) is operated by a foot switch or, at no additional cost, a hand switch.

The height and tilt adjustments are executed using electric drives that are splash-proof, maintenance-free, and extremely quiet, and are equipped with key locks. Connection values for each motor are as follows: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.

A high level of stability is guaranteed by the wide support frame, which is equipped with a mobile base on retractable castors, even under stress.

The mobile base is secured in place by pedals at the head and foot ends, which are retractable castors with a diameter of 75 mm. The castors are swivel and can be locked in place by stepping twice.

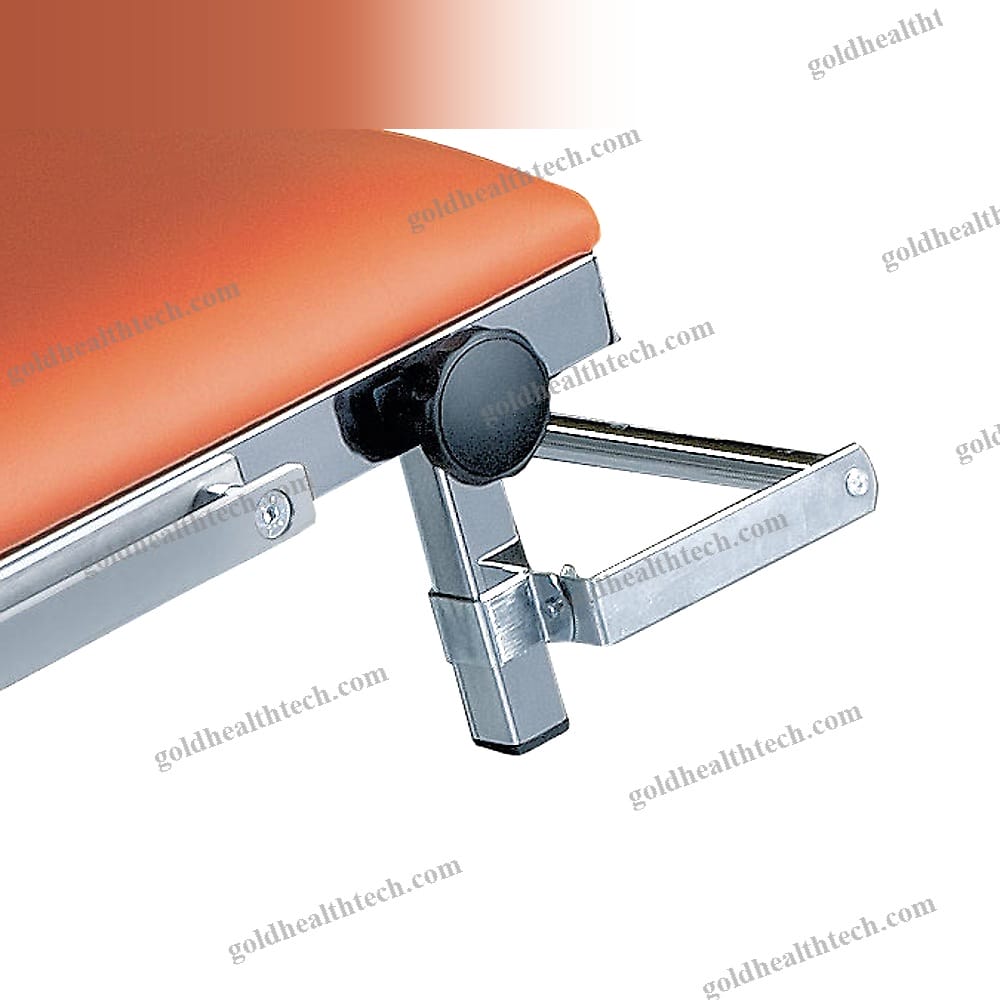

The headrest can be adjusted to a maximum of +35° by utilizing a grid with 13 locking steps.
